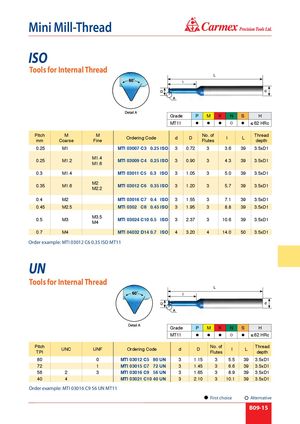

® Mini Mill-Thread ISO Tools for Internal Thread Grade P M K N S H MT11      ≤ 62 HRc Pitch M M No. of Thread Ordering Code d D I L mm Coarse Fine Flutes depth 0.25 M1 MTI 03007 C3 0.25 ISO 3 0.72 3 3.6 39 3.5xD1 M1.4 0.25 M1.2 MTI 03009 C4 0.25 ISO 3 0.90 3 4.3 39 3.5xD1 M1.6 0.3 M1.4 MTI 03011 C5 0.3 ISO 3 1.05 3 5.0 39 3.5xD1 M2 0.35 M1.6 MTI 03012 C6 0.35 ISO 3 1.20 3 5.7 39 3.5xD1 M2.2 0.4 M2 MTI 03016 C7 0.4 ISO 3 1.55 3 7.1 39 3.5xD1 0.45 M2.5 MTI 0302 C8 0.45 ISO 3 1.95 3 8.8 39 3.5xD1 M3.5 0.5 M3 MTI 03024 C10 0.5 ISO 3 2.37 3 10.6 39 3.5xD1 M4 0.7 M4 MTI 04032 D14 0.7 ISO 4 3.20 4 14.0 50 3.5xD1 Order example: MTI 03012 C6 0.35 ISO MT11 UN Tools for Internal Thread Grade P M K N S H MT11      ≤ 62 HRc Pitch No. of Thread UNC UNF Ordering Code d D I L TPI Flutes depth 80 0 MTI 03012 C5 80 UN 3 1.15 3 5.5 39 3.5xD1 72 1 MTI 03015 C7 72 UN 3 1.45 3 6.6 39 3.5xD1 56 2 3 MTI 03016 C9 56 UN 3 1.65 3 8.9 39 3.5xD1 40 4 MTI 03021 C10 40 UN 3 2.10 3 10.1 39 3.5xD1 Order example: MTI 03016 C9 56 UN MT11 First choice Alternative B09-15
