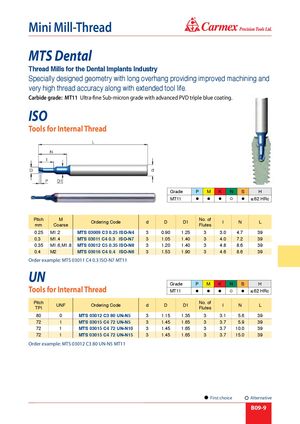

® Mini Mill-Thread MTS Dental Thread Mills for the Dental Implants Industry Specially designed geometry with long overhang providing improved machining and very high thread accuracy along with extended tool life. Carbide grade: MT11 Ultra-fine Sub-micron grade with advanced PVD triple blue coating. ISO Tools for Internal Thread Grade P M K N S H MT11      ≤ 62 HRc Pitch M No. of Ordering Code d D D1 I N L mm Coarse Flutes 0.25 M1.2 MTS 03009 C3 0.25 ISO-N4 3 0.90 1.25 3 3.0 4.7 39 0.3 M1.4 MTS 03011 C4 0.3 ISO-N7 3 1.05 1.40 3 4.0 7.2 39 0.35 M1.6,M1.8 MTS 03012 C5 0.35 ISO-N8 3 1.20 1.40 3 4.8 8.6 39 0.4 M2 MTS 03016 C4 0.4 ISO-N8 3 1.53 1.90 3 4.6 8.6 39 Order example: MTS 03011 C4 0.3 ISO-N7 MT11 UN Grade P M K N S H Tools for Internal Thread MT11      ≤ 62 HRc Pitch No. of UNF Ordering Code d D D1 I N L TPI Flutes 80 0 MTS 03012 C3 80 UN-N5 3 1.15 1.35 3 3.1 5.6 39 72 1 MTS 03015 C4 72 UN-N5 3 1.45 1.65 3 3.7 5.9 39 72 1 MTS 03015 C4 72 UN-N10 3 1.45 1.65 3 3.7 10.0 39 72 1 MTS 03015 C4 72 UN-N15 3 1.45 1.65 3 3.7 15.0 39 Order example: MTS 03012 C3 80 UN-N5 MT11 First choice Alternative B09-9
