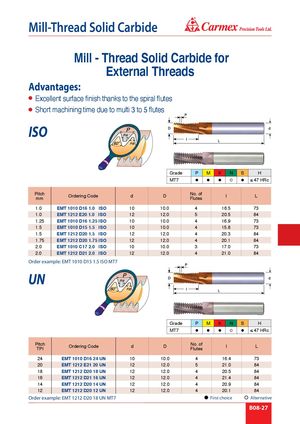

Каталог Carmex общий 2021 - страница 325

® Mill-Thread Solid Carbide Mill - Thread Solid Carbide for External Threads Advantages: Excellent surface finish thanks to the spiral flutes Short machining time due to multi 3 to 5 flutes ISO Grade P M K N S H MT7      ≤ 47 HRc Pitchmm Ordering Code d D No. ofFlutes I L 1.0 EMT 1010 D16 1.0 ISO 10 10.0 4 16.5 73 1.0 EMT 1212 E20 1.0 ISO 12 12.0 5 20.5 84 1.25 EMT 1010 D16 1.25 ISO 10 10.0 4 16.9 73 1.5 EMT 1010 D15 1.5 ISO 10 10.0 4 15.8 73 1.5 EMT 1212 D20 1.5 ISO 12 12.0 4 20.3 84 1.75 EMT 1212 D20 1.75 ISO 12 12.0 4 20.1 84 2.0 EMT 1010 C17 2.0 ISO 10 10.0 3 17.0 73 2.0 EMT 1212 D21 2.0 ISO 12 12.0 4 21.0 84 Order example: EMT 1010 D15 1.5 ISO MT7 UN Grade P M K N S H MT7      ≤ 47 HRc PitchTPI Ordering Code d D No. ofFlutes I L 24 EMT 1010 D16 24 UN 10 10.0 4 16.4 73 20 EMT 1212 E21 20 UN 12 12.0 5 21.0 84 18 EMT 1212 D20 18 UN 12 12.0 4 20.5 84 16 EMT 1212 D21 16 UN 12 12.0 4 21.4 84 14 EMT 1212 D20 14 UN 12 12.0 4 20.9 84 12 EMT 1212 D20 12 UN 12 12.0 4 20.1 84 Order example: EMT 1212 D20 18 UN MT7 First choice Alternative B08-27
