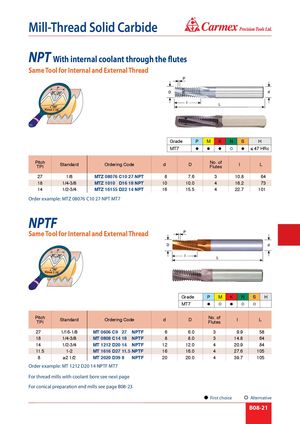

® Mill-Thread Solid Carbide NPT With internal coolant through the flutes Same Tool for Internal and External Thread Grade P M K N S H MT7      ≤ 47 HRc PitchTPI Standard Ordering Code d D No. ofFlutes I L 27 1/8 MTZ 08076 C10 27 NPT 8 7.6 3 10.8 64 18 1/4-3/8 MTZ 1010 D16 18 NPT 10 10.0 4 16.2 73 14 1/2-3/4 MTZ 16155 D22 14 NPT 16 15.5 4 22.7 101 Order example: MTZ 08076 C10 27 NPT MT7 NPTF Same Tool for Internal and External Thread Grade P M K N S H MT7      PitchTPI Standard Ordering Code d D No. ofFlutes I L 27 1/16-1/8 MT 0606 C9 27 NPTF 6 6.0 3 9.9 58 18 1/4-3/8 MT 0808 C14 18 NPTF 8 8.0 3 14.8 64 14 1/2-3/4 MT 1212 D20 14 NPTF 12 12.0 4 20.9 84 11.5 1-2 MT 1616 D27 11.5 NPTF 16 16.0 4 27.6 105 8 ≥2 1/2 MT 2020 D39 8 NPTF 20 20.0 4 39.7 105 Order example: MT 1212 D20 14 NPTF MT7 For thread mills with coolant bore see next page For conical preparation end mills see page B08-23 First choice Alternative B08-21
