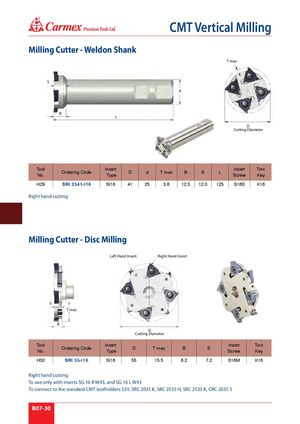

® CMT Vertical Milling Milling Cutter - Weldon Shank T max S d B L D Cutting Diameter Tool Insert Insert Torx Ordering Code D d T max B S L No. Type Screw Key H29 SRI 2541-I16 SI16 41 25 3.6 12.5 12.0 125 S16S K16 Right hand cutting Milling Cutter - Disc Milling Left Hand Insert Right Hand Insert S T max B D Cutting Diameter Tool Insert Insert Torx Ordering Code D T max B S No. Type Screw Key H30 SRI 55-I16 SI16 55 15.5 8.2 7.2 S16M K16 Right hand cutting To use only with inserts SG 16 R W43, and SG 16 L W43 To connect to the standard CMT toolholders S35: SRC 2035 K, SRC 2535 H, SRC 2535 K, CRC 2035 S B07-30
