Каталог Carmex общий 2021 - страница 276

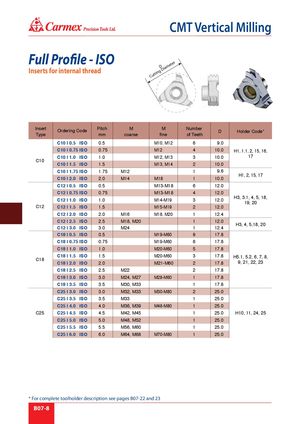

® CMT Vertical Milling Full Profile - ISO D iame ter Inserts for internal thread tting D Cu Insert Pitch M M Number Ordering Code D Holder Code* Type mm coarse fine of Teeth C10 I 0.5 ISO 0.5 M10, M12 6 9.0 C10 I 0.75 ISO 0.75 M12 4 10.0 H1, 1.1, 2, 15, 16, C10 I 1.0 ISO 1.0 M12, M13 3 10.0 17 C10 C10 I 1.5 ISO 1.5 M13, M14 2 10.0 C10 I 1.75 ISO 1.75 M12 1 9.6 H1, 2, 15, 17 C10 I 2.0 ISO 2.0 M14 M18 1 10.0 C12 I 0.5 ISO 0.5 M13-M18 6 12.0 C12 I 0.75 ISO 0.75 M13-M18 4 12.0 H3, 3.1, 4, 5, 18, C12 I 1.0 ISO 1.0 M14-M19 3 12.0 19, 20 C12 C12 I 1.5 ISO 1.5 M15-M19 2 12.0 C12 I 2.0 ISO 2.0 M16 M18, M20 1 12.4 C12 I 2.5 ISO 2.5 M18, M20 1 12.0 H3, 4, 5,18, 20 C12 I 3.0 ISO 3.0 M24 1 12.4 C18 I 0.5 ISO 0.5 M19-M60 9 17.8 C18 I 0.75 ISO 0.75 M19-M60 6 17.8 C18 I 1.0 ISO 1.0 M20-M60 5 17.8 C18 I 1.5 ISO 1.5 M20-M60 3 17.8 H5.1, 5.2, 6, 7, 8, C18 C18 I 2.0 ISO 2.0 M21-M60 2 17.8 9, 21, 22, 23 C18 I 2.5 ISO 2.5 M22 2 17.8 C18 I 3.0 ISO 3.0 M24, M27 M28-M60 1 17.8 C18 I 3.5 ISO 3.5 M30, M33 1 17.8 C25 I 3.0 ISO 3.0 M32, M33 M30-M80 2 25.0 C25 I 3.5 ISO 3.5 M33 1 25.0 C25 I 4.0 ISO 4.0 M36, M39 M48-M80 1 25.0 C25 C25 I 4.5 ISO 4.5 M42, M45 1 25.0 H10, 11, 24, 25 C25 I 5.0 ISO 5.0 M48, M52 1 25.0 C25 I 5.5 ISO 5.5 M56, M60 1 25.0 C25 I 6.0 ISO 6.0 M64, M68 M70-M80 1 25.0 * For complete toolholder description see pages B07-22 and 23 B07-8
