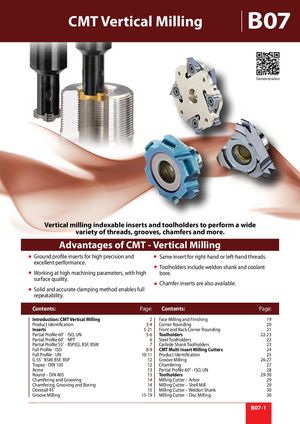

CMT VerCtiMcalTMVilelinrgtical Millin®g B07 Demonstration Vertical milling indexable inserts and toolholders to perform a wide variety of threads, grooves, chamfers and more. Advantages of CMT - Vertical Milling Ground profile inserts for high precision and Same insert for right-hand or left-hand threads. excellent performance. Toolholders include weldon shank and coolant Working at high machining parameters, with high bore. surface quality. Chamfer inserts are also available. Solid and accurate clamping method enables full repeatability. Contents: Page: Contents: Page: Introduction: CMT Vertical Milling 2 Face Milling and Finishing 19 Product Identification 3-4 Corner Rounding 20 Inserts 5-21 Front and Back Corner Rounding 21 Partial Profile 60˚ - ISO, UN 5-6 Toolholders 22-23 Partial Profile 60˚ - NPT 6 Steel Toolholders 22 Partial Profile 55˚ - BSP(G), BSF, BSW 7 Carbide Shank Toolholders 23 Full Profile - ISO 8-9 CMT Multi Insert Milling Cutters 24 Full Profile - UN 10-11 Product Identification 25 G 55˚ BSW, BSF, BSP 12 Groove Milling 26-27 Trapez - DIN 103 12 Chamfering 27 Acme 13 Partial Profile 60° - ISO, UN 28 Round – DIN 405 13 Toolholders 29-30 Chamfering and Grooving 14 Milling Cutter – Arbor 29 Chamfering, Grooving and Boring 14 Milling Cutter – Shell Mill 29 Dovetail 45˚ 15 Milling Cutter – Weldon Shank 30 Groove Milling 15-19 Milling Cutter – Disc Milling 30 B07-1
