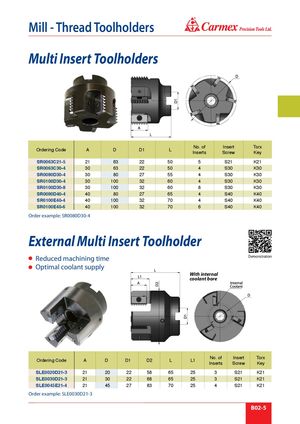

® Mill - Thread Toolholders Multi Insert Toolholders No. of Insert Torx Ordering Code A D D1 L Inserts Screw Key SR0063C21-5 21 63 22 50 5 S21 K21 SR0063C30-4 30 63 22 50 4 S30 K30 SR0080D30-4 30 80 27 55 4 S30 K30 SR0100D30-4 30 100 32 60 4 S30 K30 SR0100D30-8 30 100 32 60 8 S30 K30 SR0080D40-4 40 80 27 65 4 S40 K40 SR0100E40-4 40 100 32 70 4 S40 K40 SR0100E40-6 40 100 32 70 6 S40 K40 Order example: SR0080D30-4 External Multi Insert Toolholder Demonstration Reduced machining time Optimal coolant supply With internal coolant bore No. of Insert Torx Ordering Code A D D1 D2 L L1 Inserts Screw Key SLE0020D21-3 21 20 22 58 65 25 3 S21 K21 SLE0030D21-3 21 30 22 68 65 25 3 S21 K21 SLE0045E21-4 21 45 27 83 70 25 4 S21 K21 Order example: SLE0030D21-3 B02-5
