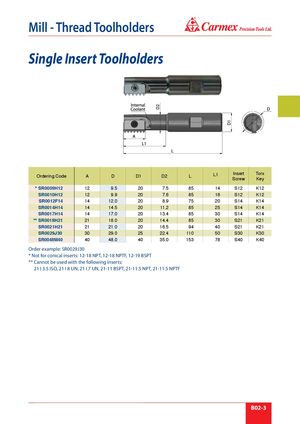

Каталог Carmex общий 2021 - страница 235

® Mill - Thread Toolholders Single Insert Toolholders Ordering Code A D D1 D2 L L1 Insert TorxScrewKey * SR0009H12 12 9.5 20 7.5 85 14 S12 K12 SR0010H12 12 9.9 20 7.6 85 16 S12 K12 SR0012F14 14 12.0 20 8.9 75 20 S14 K14 SR0014H14 14 14.5 20 11.2 85 25 S14 K14 SR0017H14 14 17.0 20 13.4 85 30 S14 K14 ** SR0018H21 21 18.0 20 14.4 85 30 S21 K21 SR0021H21 21 21.0 20 16.5 94 40 S21 K21 SR0029J30 30 29.0 25 22.4 110 50 S30 K30 SR0048M40 40 48.0 40 35.0 153 78 S40 K40 Order example: SR0029J30 * Not for conical inserts: 12-18 NPT, 12-18 NPTF, 12-19 BSPT ** Cannot be used with the following inserts: 21 I 3.5 ISO, 21 I 8 UN, 21 I 7 UN, 21-11 BSPT, 21-11.5 NPT, 21-11.5 NPTF B02-3
