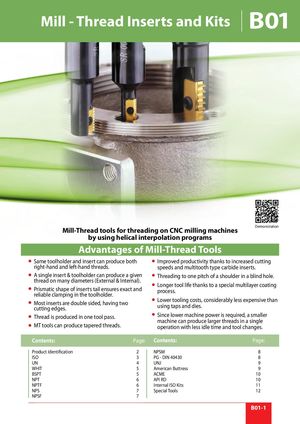

MillMill - Thread - Thread InsertsInserts and Kits ® B01 Demonstration Mill-Thread tools for threading on CNC milling machines by using helical interpolation programs Advantages of Mill-Thread Tools Same toolholder and insert can produce both Improved productivity thanks to increased cutting right-hand and left-hand threads. speeds and multitooth type carbide inserts. A single insert & toolholder can produce a given Threading to one pitch of a shoulder in a blind hole. thread on many diameters (External & Internal). Longer tool life thanks to a special multilayer coating Prismatic shape of insert,s tail ensures exact and process. reliable clamping in the toolholder. Lower tooling costs, considerably less expensive than Most inserts are double sided, having two using taps and dies. cutting edges. Thread is produced in one tool pass. Since lower machine power is required, a smaller machine can produce larger threads in a single MT tools can produce tapered threads. operation with less idle time and tool changes. Contents: Page: Contents: Page: Product Identification 2 NPSM 8 ISO 3 PG - DIN 40430 8 UN 4 UNJ 9 WHIT 5 American Buttress 9 BSPT 5 ACME 10 NPT 6 API RD 10 NPTF 6 Internal ISO Kits 11 NPS 7 Special Tools 12 NPSF 7 B01-1
