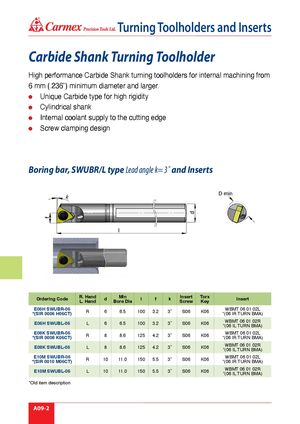

® Turning Toolholders and Inserts Carbide Shank Turning Toolholder High performance Carbide Shank turning toolholders for internal machining from 6 mm (.236”) minimum diameter and larger. Unique Carbide type for high rigidity Cylindrical shank Internal coolant supply to the cutting edge Screw clamping design Boring bar, SWUBR/L type Lead angle k= 3˚ and Inserts R. Hand Min Insert Torx Ordering Code d l f k Insert L. Hand Bore Dia Screw Key E06H SWUBR-06 WBMT 06 01 02L R 6 6.5 100 3.2 3˚ S06 K06 *(SIR 0006 H06CT) *(06 IR TURN BMA) WBMT 06 01 02R E06H SWUBL-06 L 6 6.5 100 3.2 3˚ S06 K06 *(06 IL TURN BMA) E08K SWUBR-06 WBMT 06 01 02L R 8 8.6 125 4.2 3˚ S06 K06 *(SIR 0008 K06CT) *(06 IR TURN BMA) WBMT 06 01 02R E08K SWUBL-06 L 8 8.6 125 4.2 3˚ S06 K06 *(06 IL TURN BMA) E10M SWUBR-06 WBMT 06 01 02L R 10 11.0 150 5.5 3˚ S06 K06 *(SIR 0010 M06CT) *(06 IR TURN BMA) WBMT 06 01 02R E10M SWUBL-06 L 10 11.0 150 5.5 3˚ S06 K06 *(06 IL TURN BMA) *Old item description A09-2
