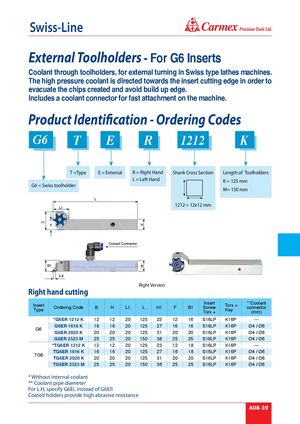

® Swiss-Line External Toolholders - For G6 Inserts Coolant through toolholders, for external turning in Swiss type lathes machines. The high pressure coolant is directed towards the insert cutting edge in order to evacuate the chips created and avoid build up edge. Includes a coolant connector for fast attachment on the machine. Product Identification - Ordering Codes G6 T E R 1212 K T =Type E = External R = Right Hand Shank Cross Section Length of Toolholders L = Left Hand K = 125 mm G6 = Swiss toolholder M= 150 mm L L1 1212 = 12x12 mm H1 F H Coolant Connector B1 B 3.8 Right Version Right hand cutting InsertType Ordering Code B H L1 L H1 F B1 InsertScrewTorx +Torx +Key**Coolantconnector(mm) *G6ER 1212 K 12 12 20 125 23 12 16 S16LP K16P --- G6 G6ER 1616 K 16 16 20 125 27 16 16 S16LP K16PG6ER 2020 K202020125312020S16LPK16PØ4 / Ø6Ø4 / Ø6 G6ER 2525 M 25 25 20 150 36 25 25 S16LP K16P Ø4 / Ø6 *TG6ER 1212 K 12 12 20 125 23 12 18 S16LP K16P --- TG6 TG6ER 1616 K 16TG6ER 2020 K20162020 125 2720125311620 18 S16LP K16P20S16LPK16PØ4 / Ø6Ø4 / Ø6 TG6ER 2525 M 25 25 20 150 36 25 25 S16LP K16P Ø4 / Ø6 * Without internal coolant ** Coolant pipe diameter For L.H, specify G6EL instead of G6ER Coated holders provide high abrasive resistance A08-39
