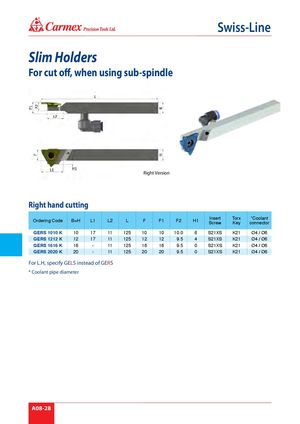

® Swiss-Line Slim Holders For cut off, when using sub-spindle Coolant Connector Right Version Right hand cutting Ordering Code B=H L1 L2 L F F1 F2 H1 InsertScrewTorx *CoolantKeyconnector GERS 1010 K 10 17 11 125 10 10 10.0 6 S21XS K21 Ø4 / Ø6 GERS 1212 K 12 17 11 125 12 12 9.5 4 S21XS K21 Ø4 / Ø6 GERS 1616 K 16 - 11 125 16 16 9.5 0 S21XS K21 Ø4 / Ø6 GERS 2020 K 20 - 11 125 20 20 9.5 0 S21XS K21 Ø4 / Ø6 For L.H, specify GELS instead of GERS * Coolant pipe diameter A08-28
