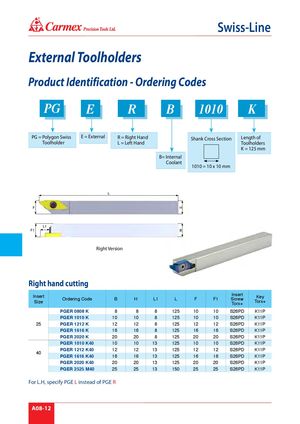

® Swiss-Line External Toolholders Product Identification - Ordering Codes PG E R B 1010 K PG = Polygon Swiss E = External R = Right Hand Shank Cross Section Length of Toolholder L = Left Hand Toolholders K = 125 mm B= Internal Coolant 1010 = 10 x 10 mm L F H L1 F1 B Right Version Right hand cutting InsertSize Ordering Code B H L1 L F F1 InsertScrewTorx+KeyTorx+ PGER 0808 K 8 8 8 125 10 10 S26PD K11P PGER 1010 K 10 10 8 125 10 10 S26PD K11P 25 PGER 1212 K 12 12 8 125 12 12 S26PD K11P PGER 1616 K 16 16 8 125 16 16 S26PD K11P PGER 2020 K 20 20 8 125 20 20 S26PD K11P PGER 1010 K40 10 10 13 125 10 10 S26PD K11P 40 PGER 1212 K40PGER 1616 K40 12 12 13 125 12 12 S26PD K11P1616131251616S26PDK11P PGER 2020 K40 20 20 13 125 20 20 S26PD K11P PGER 2525 M40 25 25 13 150 25 25 S26PD K11P For L.H, specify PGE L instead of PGE R A08-12
