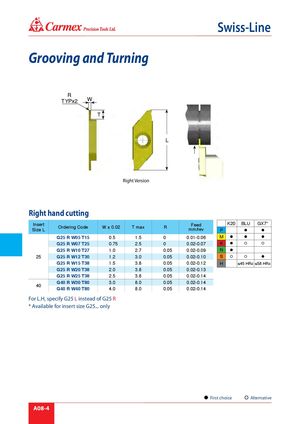

® Swiss-Line Grooving and Turning R TYPx2 W T L Right Version Right hand cutting Insert Feed K20 BLU GX7* Ordering Code W ± 0.02 T max R Size L mm/rev P   G25 R W05 T15 0.5 1.5 0 0.01-0.06 M    G25 R W07 T25 0.75 2.5 0 0.02-0.07 K    G25 R W10 T27 1.0 2.7 0.05 0.02-0.09 N  25 G25 R W12 T30 1.2 3.0 0.05 0.02-0.10 S    G25 R W15 T38 1.5 3.8 0.05 0.02-0.12 H ≤45 HRc ≤58 HRc G25 R W20 T38 2.0 3.8 0.05 0.02-0.13 G25 R W25 T38 2.5 3.8 0.05 0.02-0.14 G40 R W30 T80 3.0 8.0 0.05 0.02-0.14 40 G40 R W40 T80 4.0 8.0 0.05 0.02-0.14 For L.H, specify G25 L instead of G25 R * Available for insert size G25... only First choice Alternative A08-4
