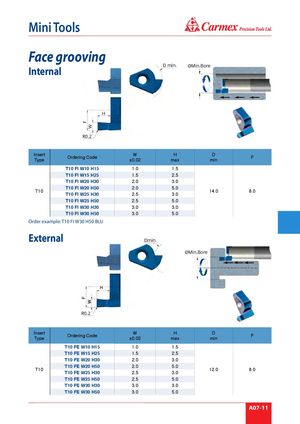

® Mini Tools Face grooving DDmin. min. ØMin.Bore Internal H H F W W R0.2 R0.2 Insert W H D Ordering Code F Type ±0.02 max min T10 FI W10 H15 1.0 1.5 T10 FI W15 H25 1.5 2.5 T10 FI W20 H30 2.0 3.0 T10 FI W20 H50 2.0 5.0 T10 14.0 8.0 T10 FI W25 H30 2.5 3.0 T10 FI W25 H50 2.5 5.0 T10 FI W30 H30 3.0 3.0 T10 FI W30 H50 3.0 5.0 Order example: T10 FI W30 H50 BLU External Dmin. ØMin.Bore H F W R0.2 Insert W H D Ordering Code F Type ±0.02 max min T10 FE W10 H15 1.0 1.5 T10 FE W15 H25 1.5 2.5 T10 FE W20 H30 2.0 3.0 T10 FE W20 H50 2.0 5.0 T10 12.0 8.0 T10 FE W25 H30 2.5 3.0 T10 FE W25 H50 2.5 5.0 T10 FE W30 H30 3.0 3.0 T10 FE W30 H50 3.0 5.0 A07-11
