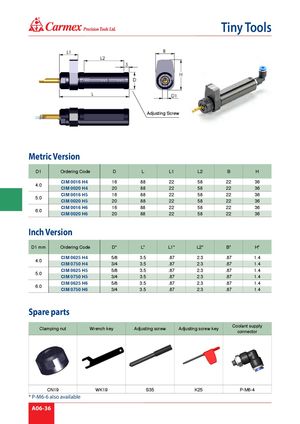

® Tiny Tools Adjusting Screw Metric Version D1 Ordering Code D L L1 L2 B H CIM 0016 H4 16 88 22 58 22 36 4.0 CIM 0020 H4 20 88 22 58 22 36 CIM 0016 H5 16 88 22 58 22 36 5.0 CIM 0020 H5 20 88 22 58 22 36 CIM 0016 H6 16 88 22 58 22 36 6.0 CIM 0020 H6 20 88 22 58 22 36 Inch Version D1 mm Ordering Code D" L" L1" L2" B" H" CIM 0625 H4 5/8 3.5 .87 2.3 .87 1.4 4.0 CIM 0750 H4 3/4 3.5 .87 2.3 .87 1.4 CIM 0625 H5 5/8 3.5 .87 2.3 .87 1.4 5.0 CIM 0750 H5 3/4 3.5 .87 2.3 .87 1.4 CIM 0625 H6 5/8 3.5 .87 2.3 .87 1.4 6.0 CIM 0750 H6 3/4 3.5 .87 2.3 .87 1.4 Spare parts Coolant supply Clamping nut Wrench key Adjusting screw Adjusting screw key connector CN19 WK19 S35 K25 P-M6-4 * P-M6-6 also available A06-36
