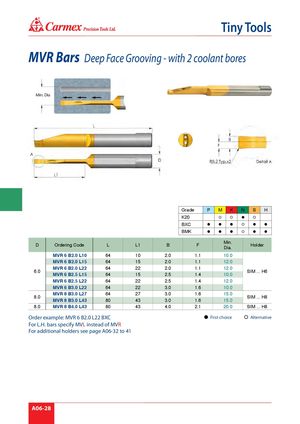

Каталог Carmex общий 2021 - страница 136

® Tiny Tools MVR Bars Deep Face Grooving - with 2 coolant bores Grade P M K N S H K20     BXC       BMK       Min. D Ordering Code L L1 B F Holder Dia. MVR 6 B2.0 L10 64 10 2.0 1.1 10.0 MVR 6 B2.0 L15 64 15 2.0 1.1 12.0 MVR 6 B2.0 L22 64 22 2.0 1.1 12.0 6.0 SIM ... H6 MVR 6 B2.5 L15 64 15 2.5 1.4 10.0 MVR 6 B2.5 L22 64 22 2.5 1.4 12.0 MVR 6 B3.0 L22 64 22 3.0 1.6 10.0 MVR 8 B3.0 L27 64 27 3.0 1.6 15.0 8.0 SIM ... H8 MVR 8 B3.0 L43 80 43 3.0 1.6 15.0 8.0 MVR 8 B4.0 L43 80 43 4.0 2.1 20.0 SIM ... H8 Order example: MVR 6 B2.0 L22 BXC First choice Alternative For L.H. bars specify MVL instead of MVR For additional holders see page A06-32 to 41 A06-28
