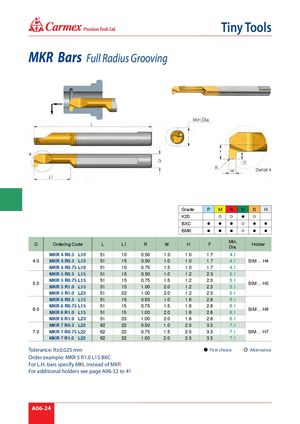

Каталог Carmex общий 2021 - страница 132

® Tiny Tools MKR Bars Full Radius Grooving Grade P M K N S H K20     BXC       BMK       Min. D Ordering Code L L1 R W H F Holder Dia. MKR 4 R0.5 L10 51 10 0.50 1.0 1.0 1.7 4.1 4.0 MKR 4 R0.5 L15 51 15 0.50 1.0 1.0 1.7 4.1 SIM ... H4 MKR 4 R0.75 L10 51 10 0.75 1.5 1.0 1.7 4.1 MKR 5 R0.5 L15 51 15 0.50 1.0 1.2 2.3 5.1 MKR 5 R0.75 L15 51 15 0.75 1.5 1.2 2.3 5.1 5.0 SIM ... H5 MKR 5 R1.0 L15 51 15 1.00 2.0 1.2 2.3 5.1 MKR 5 R1.0 L22 51 22 1.00 2.0 1.2 2.3 5.1 MKR 6 R0.5 L15 51 15 0.50 1.0 1.6 2.8 6.1 MKR 6 R0.75 L15 51 15 0.75 1.5 1.6 2.8 6.1 6.0 SIM ... H6 MKR 6 R1.0 L15 51 15 1.00 2.0 1.6 2.8 6.1 MKR 6 R1.0 L23 51 23 1.00 2.0 1.8 2.8 6.1 MKR 7 R0.5 L22 62 22 0.50 1.0 2.5 3.3 7.1 7.0 MKR 7 R0.75 L22 62 22 0.75 1.5 2.5 3.3 7.1 SIM ... H7 MKR 7 R1.0 L22 62 22 1.00 2.0 2.5 3.3 7.1 Tolerance: R±0.025 mm First choice Alternative Order example: MKR 5 R1.0 L15 BXC For L.H. bars specify MKL instead of MKR For additional holders see page A06-32 to 41 A06-24
