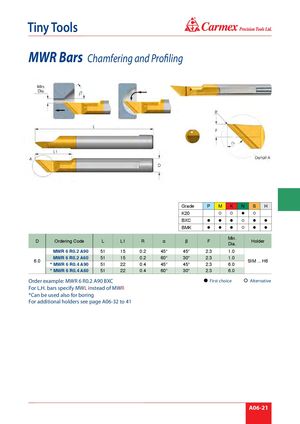

® Tiny Tools MWR Bars Chamfering and Profiling Grade P M K N S H K20     BXC       BMK       Min. D Ordering Code L L1 R α β F Holder Dia. MWR 6 R0.2 A90 51 15 0.2 45° 45° 2.3 1.0 MWR 6 R0.2 A60 51 15 0.2 60° 30° 2.3 1.0 6.0 SIM ... H6 * MWR 6 R0.4 A90 51 22 0.4 45° 45° 2.3 6.0 * MWR 6 R0.4 A60 51 22 0.4 60° 30° 2.3 6.0 Order example: MWR 6 R0.2 A90 BXC First choice Alternative For L.H. bars specify MWL instead of MWR *Can be used also for boring For additional holders see page A06-32 to 41 A06-21
