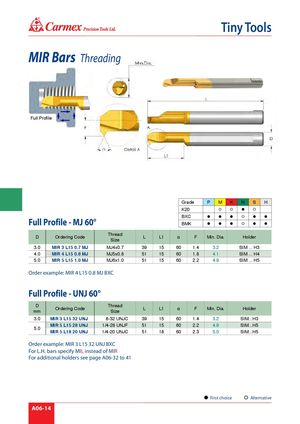

® Tiny Tools MIR Bars Threading Full Profile Grade P M K N S H K20     BXC       Full Profile - MJ 60° BMK       Thread D Ordering Code L L1 α F Min. Dia. Holder Size 3.0 MIR 3 L15 0.7 MJ MJ4x0.7 39 15 60 1.4 3.2 SIM ... H3 4.0 MIR 4 L15 0.8 MJ MJ5x0.8 51 15 60 1.8 4.1 SIM ... H4 5.0 MIR 5 L15 1.0 MJ MJ6x1.0 51 15 60 2.2 4.9 SIM ... H5 Order example: MIR 4 L15 0.8 MJ BXC Full Profile - UNJ 60° D Thread Ordering Code L L1 α F Min. Dia. Holder mm Size 3.0 MIR 3 L15 32 UNJ 8-32 UNJC 39 15 60 1.4 3.2 SIM...H3 MIR 5 L15 28 UNJ 1/4-28 UNJF 51 15 60 2.2 4.9 SIM...H5 5.0 MIR 5 L18 20 UNJ 1/4-20 UNJC 51 18 60 2.3 5.0 SIM...H5 Order example: MIR 3 L15 32 UNJ BXC For L.H. bars specify MIL instead of MIR For additional holders see page A06-32 to 41 First choice Alternative A06-14
