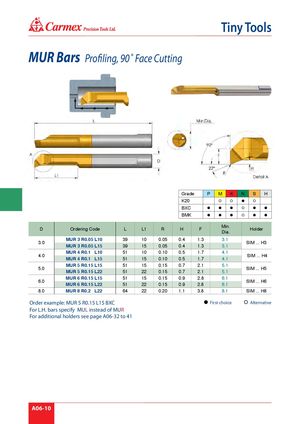

Каталог Carmex общий 2021 - страница 118

® Tiny Tools MUR Bars Profiling, 90˚ Face Cutting Grade P M K N S H K20     BXC       BMK       Min. D Ordering Code L L1 R H F Holder Dia. MUR 3 R0.05 L10 39 10 0.05 0.4 1.3 3.1 3.0 SIM ... H3 MUR 3 R0.05 L15 39 15 0.05 0.4 1.3 3.1 MUR 4 R0.1 L10 51 10 0.10 0.5 1.7 4.1 4.0 SIM ... H4 MUR 4 R0.1 L15 51 15 0.10 0.5 1.7 4.1 MUR 5 R0.15 L15 51 15 0.15 0.7 2.1 5.1 5.0 SIM ... H5 MUR 5 R0.15 L22 51 22 0.15 0.7 2.1 5.1 MUR 6 R0.15 L15 51 15 0.15 0.9 2.8 6.1 6.0 SIM ... H6 MUR 6 R0.15 L22 51 22 0.15 0.9 2.8 6.1 8.0 MUR 8 R0.2 L22 64 22 0.20 1.1 3.8 8.1 SIM ... H8 Order example: MUR 5 R0.15 L15 BXC First choice Alternative For L.H. bars specify MUL instead of MUR For additional holders see page A06-32 to 41 A06-10
