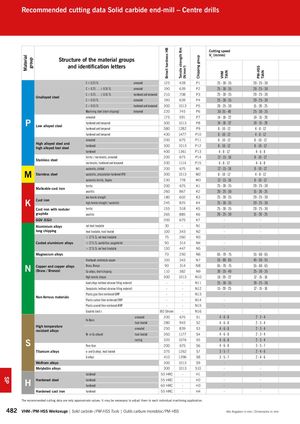

Recommended cutting data Solid carbide end-mill – Centre drills Empfohlene Schnittwerte VHM-Schaftfräser ≤ 3xD Brinell hardness HB Tensile strength Rm Cutting speed Vc (m/min) Material Chipping group Structure of the material groups group and identification letters (N/mm²) PM-HSS TiAlN TiAlN VHM C ≤ 0.25 % annealed 125 428 P1 25 - 30 - 35 20 - 25 - 30 C > 0.25 … ≤ 0.55 % annealed 190 639 P2 25 - 30 - 35 20 - 25 - 30 C > 0.25 … ≤ 0.55 % hardened and tempered 210 708 P3 25 - 30 - 35 20 - 25 - 30 Unalloyed steel C > 0.55 % annealed 190 639 P4 25 - 30 - 35 20 - 25 - 30 C > 0.55 % hardened and tempered 300 1013 P5 20 - 25 - 30 15 - 20 - 25 Machining steel (short-chipping) tempered 220 745 P6 30 -35 - 40 25 - 30 - 35 annealed 175 591 P7 14 - 18 - 22 10 - 15 - 20 P Low alloyed steel hardened and tempered hardened and tempered 300 380 1013 1282 P8 P9 14 - 18 - 22 8 - 10 - 12 10 - 15 - 20 4 - 8 - 12 hardened and tempered 430 1477 P10 8 - 10 - 12 4 - 8 - 12 annealed 200 675 P11 8 - 10 - 12 8 - 10 - 12 High alloyed steel and high alloyed tool steel hardened 300 1013 P12 8 - 10 - 12 8 - 10 - 12 hardened 400 1361 P13 4 - 8 - 12 4-6-8 ferritic / martensitic, annealed 200 675 P14 12 - 15 - 18 8 - 10 - 12 Stainless steel martensitic, hardened and tempered 330 1114 P15 4 - 8 - 12 4-6-8 austenitic, chilled 200 675 M1 12 - 15 - 18 8 - 10 - 12 M Stainless steel austenitic, precipitation-hardened (PH) austenitic-ferritic, Duplex 300 230 1013 778 M2 M3 8 - 10 - 12 12 - 15 - 18 4 - 8 - 12 8 - 10 - 12 ferritic 200 675 K1 25 - 30 - 35 20 - 25 - 30 Malleable cast iron pearlitic 260 867 K2 20 - 25 - 30 15 - 20 - 25 low tensile strength 180 602 K3 25 - 30 - 35 20 - 25 - 30 K Cast iron high tensile strength / austenitic 245 825 K4 25 - 30 - 35 20 - 25 - 30 Cast iron with nodular ferritic 155 518 K5 25 - 30 - 35 20 - 25 - 30 graphite pearlitic 265 885 K6 20 - 25 - 30 15 - 20 - 25 GGV (CGI) 200 675 K7 - - Aluminium alloys not heat treatable 30 - N1 - - long chipping heat treatable, heat treated 100 343 N2 - - ≤ 12 % Si, not heat treatable 75 260 N3 - - Casted aluminium alloys ≤ 12 % Si, aushärtbar, ausgehärtet 90 314 N4 - - > 12 % Si, not heat treatable 130 447 N5 - - Magnesium alloys 70 250 N6 65 - 70 - 75 55 - 60 - 65 Unalloyed, elektrolyte copper 100 343 N7 55 - 60 - 65 45 - 50 - 55 N Copper and copper alloys Brass, Bronze 90 314 N8 65 - 70 - 75 55 - 60 - 65 (Brass / Bronze) Cu-alloys, short-chipping 110 382 N9 30 - 35 - 40 25 - 30 - 35 High-tensile, Ampco 300 1013 N10 18 - 20 - 22 12 - 15 - 18 Lead alloys (without abrasive filling material) - - N11 25 - 30 - 35 20 - 25 - 30 Duroplastic (without abrasive filling material) - - N12 15 - 20 - 25 12 - 15 - 18 Plastic glas fibre reinforced GFRP - - N13 - - Non-ferrous materials Plastic carbon fibre reinforced CFRP - - N14 - - Plastic aramid fibre reinforced AFRP - - N15 - - Graphite (tech.) 80 Shore - N16 - - annealed 200 675 S1 4-6-8 2-3-4 Fe-Basis heat treated 280 943 S2 4-6-8 2-3-4 High temperature resistant alloys annealed 250 839 S3 4-6-8 2-3-4 Ni- or Co-alloyed heat treated 350 1177 S4 4-6-8 2-3-4 S casting 320 1076 S5 4-6-8 2-3-4 Pure titan 200 675 S6 4-6-8 3-5-7 Titanium alloys α- and β-alloys, heat treated 375 1262 S7 3-5-7 2-4-6 β-alloys 410 1396 S8 3-5-7 2-4-6 Wolfram alloys 300 1013 S9 - - Molybdän alloys 300 1013 S10 - - hardened 50 HRC - H1 - - SP H Hardened steel hardened 55 HRC - H2 - - hardened 60 HRC - H3 - - Hardened cast iron hardened 55 HRC - H4 - - The recommended cutting data are only approximate values. It may be necessary to adjust them to each individual machining application. 482 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm
