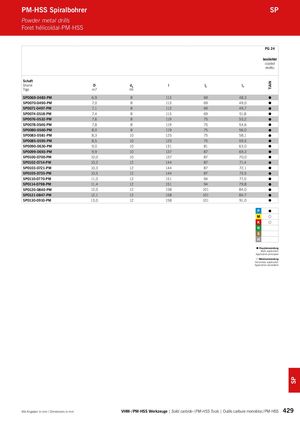

Каталог ARNO монолитный осевой инструмент - страница 429

TiAlN SP PM-HSS Spiralbohrer SP Powder metal drills Foret hélicoïdal-PM-HSS PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SP0069-0483-PM 6,9 8 113 69 48,3  SP0070-0490-PM 7,0 8 113 69 49,0  SP0071-0497-PM 7,1 8 113 69 49,7  SP0074-0518-PM 7,4 8 113 69 51,8  SP0076-0532-PM 7,6 8 119 75 53,2  SP0078-0546-PM 7,8 8 119 75 54,6  SP0080-0560-PM 8,0 8 119 75 56,0  SP0083-0581-PM 8,3 10 125 75 58,1  SP0085-0595-PM 8,5 10 125 75 59,5  SP0090-0630-PM 9,0 10 131 81 63,0  SP0099-0693-PM 9,9 10 137 87 69,3  SP0100-0700-PM 10,0 10 137 87 70,0  SP0102-0714-PM 10,2 12 144 87 71,4  SP0103-0721-PM 10,3 12 144 87 72,1  SP0105-0735-PM 10,5 12 144 87 73,5  SP0110-0770-PM 11,0 12 151 94 77,0  SP0114-0798-PM 11,4 12 151 94 79,8  SP0120-0840-PM 12,0 12 158 101 84,0  SP0121-0847-PM 12,1 12 158 101 84,7  SP0130-0910-PM 13,0 12 158 101 91,0      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 429
