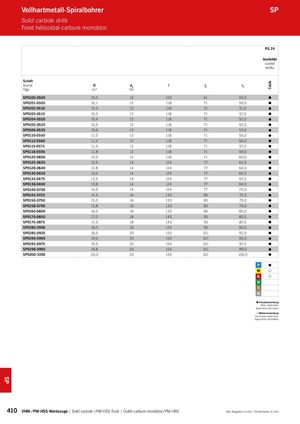

Каталог ARNO монолитный осевой инструмент - страница 410

TiAlN Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SP0100-0500 10,0 10 103 61 50,0  SP0101-0505 10,1 12 118 71 50,5  SP0102-0510 10,2 12 118 71 51,0  SP0103-0515 10,3 12 118 71 51,5  SP0104-0520 10,4 12 118 71 52,0  SP0105-0525 10,5 12 118 71 52,5  SP0106-0530 10,6 12 118 71 53,0  SP0110-0550 11,0 12 118 71 55,0  SP0112-0560 11,2 12 118 71 56,0  SP0115-0575 11,5 12 118 71 57,5  SP0118-0590 11,8 12 118 71 59,0  SP0120-0600 12,0 12 118 71 60,0  SP0125-0625 12,5 14 124 77 62,5  SP0128-0640 12,8 14 124 77 64,0  SP0130-0650 13,0 14 124 77 65,0  SP0135-0675 13,5 14 124 77 67,5  SP0138-0690 13,8 14 124 77 69,0  SP0140-0700 14,0 14 124 77 70,0  SP0145-0725 14,5 16 133 83 72,5  SP0150-0750 15,0 16 133 83 75,0  SP0158-0790 15,8 16 133 83 79,0  SP0160-0800 16,0 16 133 83 80,0  SP0170-0850 17,0 18 143 93 85,0  SP0175-0875 17,5 18 143 93 87,5  SP0180-0900 18,0 18 143 93 90,0  SP0185-0925 18,5 20 153 101 92,5  SP0190-0950 19,0 20 153 101 95,0  SP0195-0975 19,5 20 153 101 97,5  SP0198-0990 19,8 20 153 101 99,0  SP0200-1000 20,0 20 153 101 100,0      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 410 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm SP
