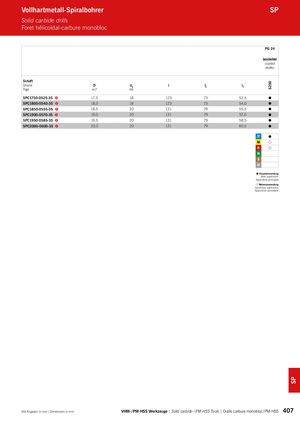

S200 SP Vollhartmetall-Spiralbohrer SP Solid carbide drills Foret hélicoïdal-carbure monobloc PG 24 beschichtet coated revêtu Schaft Shank D dA l l2 l4 Tige m7 h6 SPC1750-0525-3S N 17,5 18 123 73 52,5  SPC1800-0540-3S N 18,0 18 123 73 54,0  SPC1850-0555-3S N 18,5 20 131 79 55,5  SPC1900-0570-3S N 19,0 20 131 79 57,0  SPC1950-0585-3S N 19,5 20 131 79 58,5  SPC2000-0600-3S N 20,0 20 131 79 60,0      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 407
