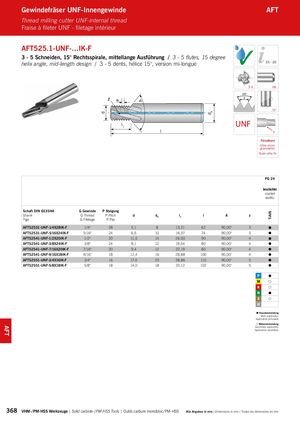

d A dA TiAlN Gewindefräser UNF-Innengewinde AFT Thread milling cutter UNF-internal thread Fraise à fileter UNF - filetage intérieur AFT525.1-UNF-…IK-F 3 - 5 Schneiden, 15° Rechtsspirale, mittellange Ausführung / 3 - 5 flutes, 15 degreehelix angle, mid-length design/3 - 5 dents, hélice 15°, version mi-longue✓371 – 373 3-5 HA 60° P 15° l1 l UNF F Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA G Gewinde P Steigung Shank G Thread P Pitch d dA l1 l A z Tige G Filetage P Pas AFT52531-UNF-1/4X28IK-F 1/4“ 28 5,1 8 13,21 62 90,00° 3  AFT52531-UNF-5/16X24IK-F 5/16“ 24 6,5 10 16,37 74 90,00° 3  AFT52541-UNF-1/2X20IK-F 1/2“ 20 11,0 14 26,00 90 90,00° 4  AFT52541-UNF-3/8X24IK-F 3/8“ 24 8,1 12 19,54 80 90,00° 4  AFT52541-UNF-7/16X20IK-F 7/16“ 20 9,4 12 22,19 80 90,00° 4  AFT52541-UNF-9/16X18IK-F 9/16“ 18 12,4 16 28,88 100 90,00° 4  AFT52551-UNF-3/4X16IK-F 3/4“ 16 17,0 20 38,86 110 90,00° 5  AFT52551-UNF-5/8X18IK-F 5/8“ 18 14,0 18 33,12 102 90,00° 5        Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 368 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFT
