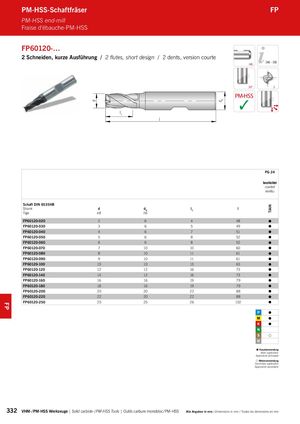

d dA TiAlN l PM-HSS-Schaftfräser FP PM-HSS end-mill Fraise d‘ébauche-PM-HSS FP60120-… 2 Schneiden, kurze Ausführung / 2 flutes, short design / 2 dents, version courte HB 346 – 350 30° 2 PM-HSS ✓ l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l Tige e8 h6 FP60120-020 2 6 4 48  FP60120-030 3 6 5 49  FP60120-040 4 6 7 51  FP60120-050 5 6 8 52  FP60120-060 6 6 8 52  FP60120-070 7 10 10 60  FP60120-080 8 10 11 61  FP60120-090 9 10 11 61  FP60120-100 10 10 13 63  FP60120-120 12 12 16 73  FP60120-140 14 12 16 73  FP60120-160 16 16 19 79  FP60120-180 18 16 19 79  FP60120-200 20 20 22 88  FP60120-220 22 20 22 88  FP60120-250 25 25 26 102       Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 332 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm FP
