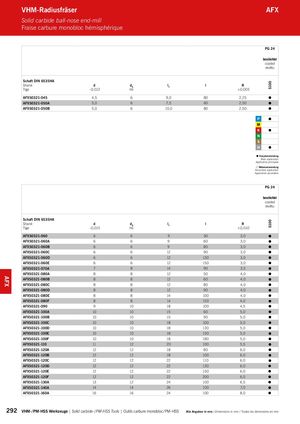

S100S100 VHM-Radiusfräser AFX Solid carbide ball-nose end-mill Fraise carbure monobloc hémisphérique PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,012 h6 ±0,005 AFX50321-045 4,5 6 9,0 80 2,25  AFX50321-050A 5,0 6 7,5 60 2,50  AFX50321-050B 5,0 6 10,0 80 2,50      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l R Tige -0,015 h6 ±0,010 AFX50321-060 6 6 9 50 3,0  AFX50321-060A 6 6 9 60 3,0  AFX50321-060B 6 6 9 80 3,0  AFX50321-060C 6 6 12 90 3,0  AFX50321-060D 6 6 12 130 3,0  AFX50321-060E 6 6 12 150 3,0  AFX50321-070A 7 8 14 90 3,5  AFX50321-080A 8 8 12 50 4,0  AFX50321-080B 8 8 12 60 4,0  AFX50321-080C 8 8 12 80 4,0  AFX50321-080D 8 8 12 90 4,0  AFX50321-080E 8 8 14 100 4,0  AFX50321-080F 8 8 14 150 4,0  AFX50321-090 9 10 18 100 4,5  AFX50321-100A 10 10 15 60 5,0  AFX50321-100B 10 10 15 90 5,0  AFX50321-100C 10 10 18 100 5,0  AFX50321-100D 10 10 18 130 5,0  AFX50321-100E 10 10 18 150 5,0  AFX50321-100F 10 10 18 180 5,0  AFX50321-110 11 12 20 100 5,5  AFX50321-120A 12 12 18 80 6,0  AFX50321-120B 12 12 18 100 6,0  AFX50321-120C 12 12 22 110 6,0  AFX50321-120D 12 12 22 130 6,0  AFX50321-120E 12 12 22 150 6,0  AFX50321-120F 12 12 22 200 6,0  AFX50321-130A 13 12 24 100 6,5  AFX50321-140A 14 14 26 100 7,0  AFX50321-160A 16 16 24 100 8,0  292 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm AFX
