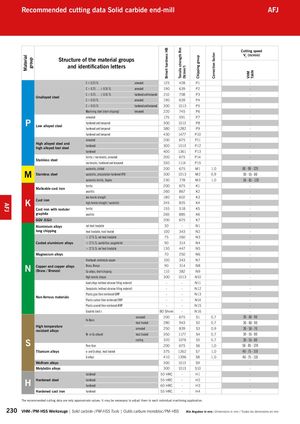

Recommended cutting data Solid carbide end-mill AFJ

s HBRmorCutting speed
rial upStructureof the material groupsdnesngthroupfactVc (m/min)
ate groand iidentification lettersharstre ²)ng gtion
MiiBrinellTensile (N/mmChippiCorrecVHM TiAlN
C ≤ 0.25 % annealed125428P1-
C > 0.25 … ≤ 0.55 % annealed190639P2-
Unalloyed steelC > 0.25 … ≤ 0.55 % hardened and tempered 210708P3-
C > 0.55 % annealed190639P4-
C > 0.55 % hardened and tempered 3001013P5-
Machining steel (short-chipping) tempered220745P6-
annealed175591P7-
Phardened and tempered3001013P8-
Low alloyed steelhardened and tempered3801282P9-
hardened and tempered4301477P10-
annealed200675P11-
High alloyed steel and hih lld tl tlhardened3001013P12-
g aoye oo seehardened4001361P13-
ferritic / martensitic, annealed200675P14-
Stainless steelmartensitic, hardened and tempered3301114P15-
austenitic, chilled200675M11,060 - 90 - 120
MStainless steelaustenitic, precipitation-hardened (PH)3001013M20,930 - 55 - 80
austenitic-ferritic, Duplex230778M31,050 - 85 - 120
ferritic200675K1-
Malleable cast ironpearlitic260867K2-
Cast ironlow tensile strength180602K3-
Khigh tensile strength / austenitic245825K4-
Cast iron with nodularferritic155518K5-
graphitepearlitic265885K6-
GGV (CGI)200675K7-
Aluminium alloysnot heat treatable30-N1-
long chippingheat treatable, heat treated100343N2-
≤ 12 % Si, not heat treatable75260N3-
Casted aluminium alloys≤ 12 % Si, aushärtbar, ausgehärtet90314N4-
> 12 % Si, not heat treatable130447N5-
Magnesium alloys70250N6-
Unalloyed, elektrolyte copper100343N7-
Copper and copper alloysBrass, Bronze90314N8-
N(Brass / Bronze)Cu-alloys, short-chipping110382N9-
High-tensile, Ampco3001013N10-
Lead alloys (without abrasive filling material)--N11-
i Duroplastic (without abrasive filling material)--N12-
Non-ferrous materialsPlastic glas fibre reinforced GFRP i--N13-
Plastic carbon fibre reinforced CFRP--N14-
Plastic aramid fibre reinforced AFRP--N15-
Graphite (tech.)80 Shore-N16-
FBi annealed200675S10,730 - 60 - 90
e-ass heat treated280943S20,730 - 60 - 90
High temperatureannealed250839S30,930 - 50 - 70
resistant alloysNi- or Co-alloyed heat treated3501177S40,730 - 55 - 80
Scasting3201076S50,730 - 55 - 80
Pure titan200675S61,050 - 85 - 120
Titanium alloysα- and β-alloys, heat treated3751262S71,040 - 75 - 110
β-alloys4101396S81,040 - 75 - 110
Wolfram alloys3001013S9-
Molybdän alloys3001013S10-
hardened50 HRC-H1-
HHardened steelhardened55 HRC-H2-
Hardened cast ironhardened hardened60 HRC 55 HRC- -H3 H4- -
