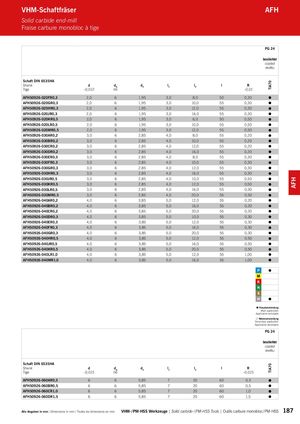

PG 24 beschichtet coated revêtu Schaft DIN 6535HA
| Shank | d | d | d | l | l | l | R | |
| Tige | -0,012 | h6A | 3 | 1 | 2 | -0,01 | ||
| AFH50926-020FR0,3 | 2,0 | 6 | 1,95 | 3,0 | 8,0 | 50 | 0,30 | |
| AFH50926-020GR0,3 | 2,0 | 6 | 1,95 | 3,0 | 10,0 | 55 | 0,30 | |
| AFH50926-020HR0,3 | 2,0 | 6 | 1,95 | 3,0 | 12,0 | 55 | 0,30 | |
| AFH50926-020JR0,3 | 2,0 | 6 | 1,95 | 3,0 | 16,0 | 55 | 0,30 | |
| AFH50926-020KR0,5 | 2,0 | 6 | 1,95 | 3,0 | 6,0 | 50 | 0,50 | |
| AFH50926-020LR0,5 | 2,0 | 6 | 1,95 | 3,0 | 10,0 | 55 | 0,50 | |
| AFH50926-020MR0,5 | 2,0 | 6 | 1,95 | 3,0 | 12,0 | 55 | 0,50 | |
| AFH50926-030AR0,2 | 3,0 | 6 | 2,85 | 4,0 | 8,0 | 55 | 0,20 | |
| AFH50926-030BR0,2 | 3,0 | 6 | 2,85 | 4,0 | 10,0 | 55 | 0,20 | |
| AFH50926-030CR0,2 | 3,0 | 6 | 2,85 | 4,0 | 12,0 | 55 | 0,20 | |
| AFH50926-030DR0,2 | 3,0 | 6 | 2,85 | 4,0 | 16,0 | 55 | 0,20 | |
| AFH50926-030ER0,3 | 3,0 | 6 | 2,85 | 4,0 | 8,0 | 55 | 0,30 | |
| AFH50926-030FR0,3 | 3,0 | 6 | 2,85 | 4,0 | 10,0 | 55 | 0,30 | |
| AFH50926-030GR0,3 | 3,0 | 6 | 2,85 | 4,0 | 12,0 | 55 | 0,30 | |
| AFH50926-030HR0,3 | 3,0 | 6 | 2,85 | 4,0 | 16,0 | 55 | 0,30 | |
| AFH50926-030JR0,5 | 3,0 | 6 | 2,85 | 4,0 | 10,0 | 55 | 0,50 | |
| AFH50926-030KR0,5 | 3,0 | 6 | 2,85 | 4,0 | 12,0 | 55 | 0,50 | |
| AFH50926-030LR0,5 | 3,0 | 6 | 2,85 | 4,0 | 16,0 | 55 | 0,50 | |
| AFH50926-030MR0,5 | 3,0 | 6 | 2,85 | 4,0 | 20,0 | 55 | 0,50 | |
| AFH50926-040AR0,2 | 4,0 | 6 | 3,85 | 5,0 | 12,0 | 55 | 0,20 | |
| AFH50926-040BR0,2 | 4,0 | 6 | 3,85 | 5,0 | 16,0 | 55 | 0,20 | |
| AFH50926-040CR0,2 | 4,0 | 6 | 3,85 | 5,0 | 20,0 | 55 | 0,20 | |
| AFH50926-040DR0,3 | 4,0 | 6 | 3,85 | 5,0 | 10,0 | 55 | 0,30 | |
| AFH50926-040ER0,3 | 4,0 | 6 | 3,85 | 5,0 | 12,0 | 55 | 0,30 | |
| AFH50926-040FR0,3 | 4,0 | 6 | 3,85 | 5,0 | 16,0 | 55 | 0,30 | |
| AFH50926-040GR0,3 | 4,0 | 6 | 3,85 | 5,0 | 20,0 | 55 | 0,30 | |
| AFH50926-040HR0,5 | 4,0 | 6 | 3,85 | 5,0 | 12,0 | 55 | 0,50 | |
| AFH50926-040JR0,5 | 4,0 | 6 | 3,85 | 5,0 | 16,0 | 55 | 0,50 | |
| AFH50926-040KR0,5 | 4,0 | 6 | 3,85 | 5,0 | 20,0 | 55 | 0,50 | |
| AFH50926-040LR1,0 | 4,0 | 6 | 3,85 | 5,0 | 12,0 | 55 | 1,00 | |
| AFH50926-040MR1,0 | 4,0 | 6 | 3,85 | 5,0 | 16,0 | 55 | 1,00 | |
Hauptanwendung Main application Application principale Nebenanwendung Secondary application Application secondaire PG 24 beschichtet coated revêtu Schaft DIN 6535HA
| Shank | d | d | d | l | l | l | R | |
| Tige | -0,015 | h6A | 3 | 1 | 2 | -0,015 | ||
| AFH50926-060AR0,3 | 6 | 6 | 5,85 | 7 | 20 | 60 | 0,3 | |
| AFH50926-060BR0,5 | 6 | 6 | 5,85 | 7 | 20 | 60 | 0,5 | |
| AFH50926-060CR1,0 | 6 | 6 | 5,85 | 7 | 20 | 60 | 1,0 | |
| AFH50926-060DR1,5 | 6 | 6 | 5,85 | 7 | 20 | 60 | 1,5 | |
