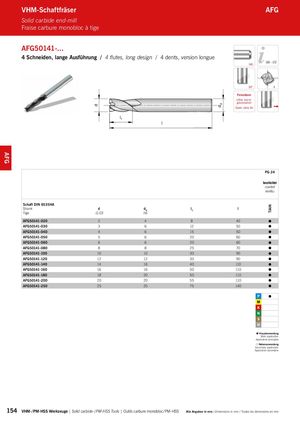

Каталог ARNO монолитный осевой инструмент - страница 154

AFG TiAlN VHM-Schaftfräser AFG Solid carbide end-mill Fraise carbure monobloc à tige AFG50141-... 4 Schneiden, lange Ausführung / 4 flutes, long design / 4 dents, version longue HA 163 – 172 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFG50141-020 2 4 8 40  AFG50141-030 3 6 12 50  AFG50141-040 4 6 15 50  AFG50141-050 5 6 20 60  AFG50141-060 6 6 20 60  AFG50141-080 8 8 25 70  AFG50141-100 10 10 30 90  AFG50141-120 12 12 30 90  AFG50141-140 14 16 40 110  AFG50141-160 16 16 50 110  AFG50141-180 18 20 50 110  AFG50141-200 20 20 55 110  AFG50141-250 25 25 75 140    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 154 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
