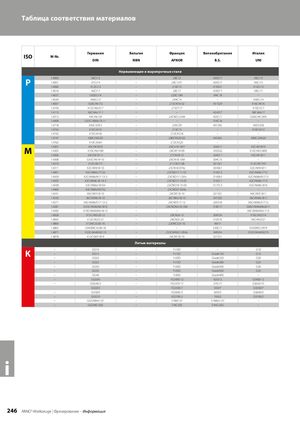

| ISO | W-Nr. | Германия | Бельгия | Франция | Великобритания | италия |
| DIN | NBN | AFNOR | B.S. | UNI | ||
| 1.4000 | X6Cr13 | Нержавеющие и жар – | опрочные стали Z8C12 | 403S17 | X6Cr13 | |
| P | 1.4001 | X7Cr14 | – | Z8C13FF | 403S17 | X6Cr13 |
| 1.4006 | X12Cr13 | – | Z10C13 | 410S21 | X12Cr13 | |
| 1.4016 | X6Cr17 | – | Z8C17 | 430S17 | X8Cr17 | |
| 1.4027 | GX20Cr14 | – | Z20C13M | ANC1B | – | |
| 1.4034 | X46Cr13 | – | Z44C14 | – | X40Cr14 | |
| 1.4057 | X20CrNi172 | – | Z15CN16-02 | 431S29 | X16CrNi16 | |
| 1.4104 | X12CrMoS17 | – | Z13CF17 | – | X10CrS17 | |
| 1.4113 | X6CrMo17-1 | – | – | 434S17 | X8CrMo17 | |
| 1.4313 | X4CrNi134 | – | Z4CND13.4M | 425C11 | GX6CrNi1304 | |
| 1.4408 | GX5CrNiMo19-11 | – | – | 316C16 | – | |
| 1.4718 | X45CrSi9-3 | – | Z45CS9 | 401S45 | X45CrSi8 | |
| 1.4724 | X10CrAl13 | – | Z13C13 | – | X10CrAl12 | |
| 1.4742 | X10CrAl18 | – | Z12CAS18 | – | – | |
| 1.4747 1.4762 | X80CrNiSi20 X10CrAl24 | – – | Z80CNS20-02 Z12CAS25 | 443S65 – | X80CrSiNi20 – | |
| 1.4301 | X5CrNi1810 | – | Z4Cn19-10FF | 304S11 | X5CrNi1810 | |
| M | 1.4305 | X10CrNiS189 | – | Z8CNF19-09 | 303S22 | X10CrNiS1809 |
| 1.4306 | X2CrNi19-11 | – | Z1CN18-12 | 304S11 | X3CrNi1811 | |
| 1.4308 | GX5CrNi19-10 | – | Z6CN18.10M | 304C15 | – | |
| 1.4310 | X12CrNi177 | – | Z11CN17-08 | 301S21 | X12CrNi1707 | |
| 1.4311 1.4401 | X2CrNiN18-10 X5CrNiMo17122 | – – | Z3CN18-07Az Z3CND17-11-01 | 304S61 316S13 | X2CrNiN1811 X5CrNiMo1712 | |
| 1.4429 | X2CrNiMoN17-13-3 | – | Z3CND17-12Az | 316S63 | X2CrNiMoN1713 | |
| 1.4435 | X2CrNiMo18-14-3 | – | Z3CND17-12-03 | 316S11 | X2CrNiMo1713 | |
| 1.4438 | X2CrNiMo18164 | – | Z2CND19-15-04 | 317S12 | X2CrNiMo1816 | |
| 1.4460 1.4541 | X4CrNiMoN2752 X6CrNiTi18-10 | – – | Z5CND27-05Az Z6CNT18-10 | – 321S31 | – X6CrNiTi1811 | |
| 1.4550 | X6CrNiNb18-10 | – | Z6CNNb18-10 | 347S20 | X6CrNiNb1811 | |
| 1.4571 | X6CrNiMoTi17-12-2 | – | Z6CNDT17-12 | 320S18 | X6CrNiMoTi1712 | |
| 1.4581 | GX5CrNiMoNb1810 | – | Z4CNDNb18.12M | 318C17 | GX6CrNiMoNb2011 | |
| 1.4583 | X10CrNiMoNb18-12 | – | – | – | X6CrNiMoNb1713 | |
| 1.4828 | X15CrNiSi20-12 | – | Z9CN24-13 | 309S24 | X16CrNi2314 | |
| 1.4845 | X12CrNi25-21 | – | Z8CN25-20 | 310S16 | X6CrNi2521 | |
| 1.4864 | X12NiCrSi36-16 | – | Z20NCS33-16 | NA17 | – | |
| 1.4865 | GX40NiCrSi38-18 | - | – | 330C11 | GX50NiCr3919 | |
| 1.4871 | X53CrMnNiN21-9 | – | Z53CMNS21-09Az | 349S54 | X53CrMnNiN219 | |
| 1.4878 | X12CrNiTi18-9 | – | Z6CNT18-10 | 321S51 | – | |
| Литые мате | риалы | |||||
| – | GG10 | – | Ft10D | – | G10 | |
| K | – | GG15 | – | Ft15D | Grade150 | G15 |
| – – | GG20 GG25 | – – | Ft20D Ft15D | Grade220 Grade260 | G20 G25 | |
| – | GG30 | – | Ft30D | Grade300 | G30 | |
| – – | GG35 GG40 | – – | Ft35D Ft40D | Grade350 Grade400 | G35 – | |
| – | GGG40 | – | FGS400-12 | 420/12 | GS400-12 | |
| – | GGG40.3 | – | FGS370-17 | 370/17 | GS042/15 | |
| GGG50 | FGS500-7 | 500/7 | GS500/7 | |||
| – | GGG60 | – | FGS600-3 | 600/3 | GS600/3 | |
| – | GGG70 | – | FGS700-2 | 700/2 | GS700/2 | |
| – – | GGGNiMn137 GGGNiCr202 | – – | S-NM137 S-NC202 | S-NiMn137 S-NiCr202 | – – |
