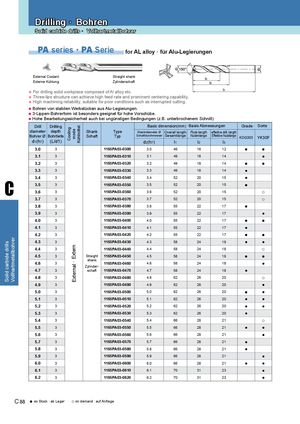

Solid carbide drills Vollhartmetallbohrer Cooling modeExternal · Extern Kühlmittel. Drilling · Bohren Solid carbide drills · Vollhartmetallbohrer PA series · PA Serie for AL alloy · für Alu-Legierungen External Coolant Straight shank Externe Kühlung Zylinderschaft ● For drilling solid workpiece composed of Al alloy etc. ● Three-lips structure can achieve high feed rate and prominent centering capability. ● High machining reliability, suitable for poor conditions such as interrupted cutting. ● Bohren von stabilen Werkstücken aus Alu-Legierungen. ● 3-Lippen-Bohrerform ist besonders geeignet für hohe Vorschübe. ● Hohe Bearbeitungssicherheit auch bei ungünstigen Bedingungen (z.B. unterbrochenem Schnitt) Drill Drilling Basic dimension(mm) ·Basis Abmessungen Grade · Sorte diameter depth Shank Type Shankdiameter Ø Overall length Flute length effective drill. length Bohrer Ø Bohrtiefe Schaft Typ Schaftdurchmesser Gesamtlänge Nutenlänge Effektive Nutzlänge KDG303 YK30F d1(h7) (L/d1) d2(h7) l1 l2 l3 3.0 3 1165PA03-0300 3.0 46 16 12 ● ● 3.1 3 1165PA03-0310 3.1 49 18 14 ● 3.2 3 1165PA03-0320 3.2 49 18 14 ● ● 3.3 3 1165PA03-0330 3.3 49 18 14 ● 3.4 3 1165PA03-0340 3.4 52 20 15 ● C 3.5 33.63 1165PA03-0350 3.5 52 20 15 ●1165PA03-03603.6522015○ 3.7 3 1165PA03-0370 3.7 52 20 15 ○ 3.8 3 1165PA03-0380 3.8 55 22 17 ● 3.9 3 1165PA03-0390 3.9 55 22 17 ● 4.0 3 1165PA03-0400 4.0 55 22 17 ● ● 4.1 3 1165PA03-0410 4.1 55 22 17 ● 4.2 3 1165PA03-0420 4.2 55 22 17 ● ● 4.3 3 1165PA03-0430 4.3 58 24 18 ● ● 4.4 3 1165PA03-0440 4.4 58 24 18 ○ 4.5 3 Straight 1165PA03-0450 4.5 58 24 18 ● ● shank 4.6 3 1165PA03-0460 4.6 58 24 18 ● Zylinder- 4.7 3 schaft 1165PA03-0470 4.7 58 24 18 ● 4.8 3 1165PA03-0480 4.8 62 26 20 ○ 4.9 3 1165PA03-0490 4.9 62 26 20 ● 5.0 3 1165PA03-0500 5.0 62 26 20 ● ● 5.1 3 1165PA03-0510 5.1 62 26 20 ● ● 5.2 3 1165PA03-0520 5.2 62 26 20 ● ● 5.3 3 1165PA03-0530 5.3 62 26 20 ● 5.4 3 1165PA03-0540 5.4 66 28 21 ○ 5.5 3 1165PA03-0550 5.5 66 28 21 ● ● 5.6 3 1165PA03-0560 5.6 66 28 21 ● 5.7 3 1165PA03-0570 5.7 66 28 21 ● 5.8 3 1165PA03-0580 5.8 66 28 21 ● 5.9 3 1165PA03-0590 5.9 66 28 21 ● 6.0 3 1165PA03-0600 6.0 66 28 21 ● ● 6.1 3 1165PA03-0610 6.1 70 31 23 ● 6.2 3 1165PA03-0620 6.2 70 31 23 ● C 88 ● ex Stock · ab Lager ○ on demand · auf Anfrage
