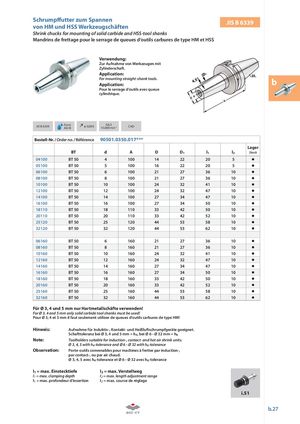

Schrump utter zum Spannenvon HM und HSS Werkzeugschäften JIS B 6339 Shrink chucks for mounting of solid carbide and HSS-tool shanks Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft. Application: For mounting straight-shank tools.Application: b Pour le serrage d’outils avec queue cylindrique. JIS B 6339 FormAD/B ≤ 0,003 G6,315.000 min-1CAD Bestell-Nr. / Order no. / Référence 90501.0350.017*** Lager BT d A D D1 l1 l2 Stock 04100 BT 50 4 100 14 22 20 5 05100 BT 50 5 100 16 22 20 5 06100 BT 50 6 100 21 27 36 10 08100 BT 50 8 100 21 27 36 10 10100 BT 50 10 100 24 32 41 10 12100 BT 50 12 100 24 32 47 10 14100 BT 50 14 100 27 34 47 10 16100 BT 50 16 100 27 34 50 10 18110 BT 50 18 110 33 42 50 10 20110 BT 50 20 110 33 42 52 10 25120 BT 50 25 120 44 53 58 10 32120 BT 50 32 120 44 53 62 10 06160 BT 50 6 160 21 27 36 10 08160 BT 50 8 160 21 27 36 10 10160 BT 50 10 160 24 32 41 10 12160 BT 50 12 160 24 32 47 10 14160 BT 50 14 160 27 34 47 10 16160 BT 50 16 160 27 34 50 10 18160 BT 50 18 160 33 42 50 10 20160 BT 50 20 160 33 42 52 10 25160 BT 50 25 160 44 53 58 10 32160 BT 50 32 160 44 53 62 10 Für Ø 3, 4 und 5 mm nur Hartmetallschäfte verwenden! For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used! Pour Ø 3, 4 et 5 mm il faut seulement utiliser de queues d‘outils carbures de type HM! Hinweis: Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet. Schafttoleranz bei Ø 3, 4 und 5 mm = h4, bei Ø 6 – Ø 32 mm = h6 Note: Toolholders suitable for induction-, contact- and hot air shrink units. Ø 3, 4, 5 with h4-tolerance and Ø 6 – Ø 32 with h6-tolerance Observation: Porte-outils convenables pour machines à fretter par induction-, par contact-, ou par air chaud. Ø 3, 4, 5 avec h4-tolerance et Ø 6 – Ø 32 avec h6-tolerance l1 = max. Einstecktiefe l2 = max. Verstellweg l1 = max. clamping depth l2 = max. length adjustment range l1 = max. profondeur d’insertion l2 = max. course de réglage i.51 b.27
