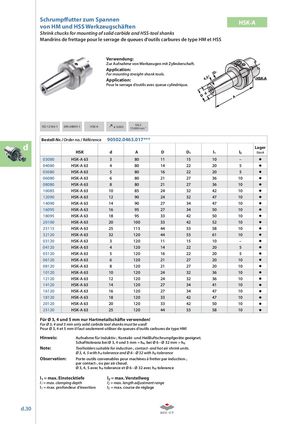

Schrump utter zum Spannenvon HM und HSS Werkzeugschäften HSK-A Shrink chucks for mounting of solid carbide and HSS-tool shanks Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft. Application: For mounting straight-shank tools. Application: Pour le serrage d’outils avec queue cylindrique. ISO 12164-1 DIN 69893-1 HSK-A  ≤ 0,003 G6,315.000 min-1 Bestell-Nr. / Order no. / Référence 90502.0463.017*** d Lager HSK d A D D1 l1 l2 Stock 03080 HSK-A 63 3 80 11 15 10 – 04080 HSK-A 63 4 80 14 22 20 5 05080 HSK-A 63 5 80 16 22 20 5 06080 HSK-A 63 6 80 21 27 36 10 08080 HSK-A 63 8 80 21 27 36 10 10085 HSK-A 63 10 85 24 32 42 10 12090 HSK-A 63 12 90 24 32 47 10 14090 HSK-A 63 14 90 27 34 47 10 16095 HSK-A 63 16 95 27 34 50 10 18095 HSK-A 63 18 95 33 42 50 10 20100 HSK-A 63 20 100 33 42 52 10 25115 HSK-A 63 25 115 44 53 58 10 32120 HSK-A 63 32 120 44 53 61 10 03120 HSK-A 63 3 120 11 15 10 – 04120 HSK-A 63 4 120 14 22 20 5 05120 HSK-A 63 5 120 16 22 20 5 06120 HSK-A 63 6 120 21 27 20 10 08120 HSK-A 63 8 120 21 27 20 10 10120 HSK-A 63 10 120 24 32 36 10 12120 HSK-A 63 12 120 24 32 36 10 14120 HSK-A 63 14 120 27 34 41 10 16120 HSK-A 63 16 120 27 34 47 10 18120 HSK-A 63 18 120 33 42 47 10 20120 HSK-A 63 20 120 33 42 50 10 25120 HSK-A 63 25 120 44 53 58 10 Für Ø 3, 4 und 5 mm nur Hartmetallschäfte verwenden! For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used! Pour Ø 3, 4 et 5 mm il faut seulement utiliser de queues d‘outils carbures de type HM! Hinweis: Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet. Schafttoleranz bei Ø 3, 4 und 5 mm = h4, bei Ø 6 – Ø 32 mm = h6 Note: Toolholders suitable for induction-, contact- and hot air shrink units. Ø 3, 4, 5 with h4-tolerance and Ø 6 – Ø 32 with h6-tolerance Observation: Porte-outils convenables pour machines à fretter par induction-, par contact-, ou par air chaud. Ø 3, 4, 5 avec h4-tolerance et Ø 6 – Ø 32 avec h6-tolerance l1 = max. Einstecktiefe l2 = max. Verstellweg l1 = max. clamping depth l2 = max. length adjustment range l1 = max. profondeur d’insertion l2 = max. course de réglage d.30
