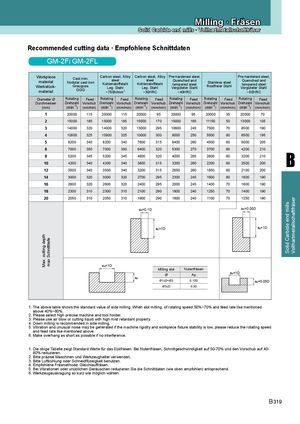

Max. cutting depth max Schnitttiefe Solid Carbide end mills Vollhartmetallschaftfräser Milling · Fräsen Solid Carbide end mills · Vollhartmetallschaftfräser Recommended cutting data · Empfohlene Schnittdaten GM-2F| GM-2FL WorkpiecematerialWerkstück-material Cast iron,Nodular cast ironGraugussGGGCarbon steel, AlloyCarbon steel, AlloyPre-hardened steel,steelsteelQuenched andKohlenstoffstahlKohlenstoffstahltempered steelLeg. StahlLeg. StahlVergüteter Stahl~750N/mm2~30HRC~40HRCStainless steelRostfreier StahlPre-hardened steel,Quenched andtempered steelVergüteter Stahl~50HRC Diameter Ø Rotating Feed Rotating Feed Rotating Feed Rotating Feed Rotating Feed Rotating Feed Durchmesser Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub Drehzahl Vorschub (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 1 20000 115 20000 115 20000 95 20000 95 20000 35 20000 70 2 15000 185 15000 185 15000 170 15000 165 11150 50 13000 105 3 14000 320 14000 320 13000 295 10600 245 7500 70 8500 190 4 10800 325 10800 325 10000 300 8000 250 5500 80 6500 195 5 8200 340 8200 340 7600 315 6400 260 4500 80 5000 205 6 7000 350 7000 350 6400 320 5300 270 3700 80 4200 210 810 5200 345 5200 345 4800 320 4000 265 2800 80 3200 21042003404200340380031532002602200802500200B 12 3500 340 3500 340 3200 315 2650 260 1850 80 2100 200 14 3000 320 3000 320 2700 295 2300 245 1600 80 1800 190 16 2600 320 2600 320 2400 295 2000 245 1400 70 1600 190 18 2300 310 2300 310 2100 290 1800 240 1250 70 1400 190 20 2050 310 2050 310 1900 290 1600 240 1100 70 1250 190 ae=0.1D ae=0.05D ap=1D ap=1D ae=1D Milling slot Nutenfräsen Ø Ap ae=1D ap Ø1≤D<Ø3 0.15D ap=0.05D Ø3≤D 0.3D 1. The above table shows the standard value of side milling. When slot milling, of rotating speed 50%~70% and feed rate like mentioned above 40%~60%. 2. Please select high precise machine and tool holder. 3. Please use air blow or cutting liquid with high mist retardant property. 4. Down milling is recommended in side milling. 5. Vibration and unusual noise may be generated if the machine rigidity and workpiece fixture stability is low, please reduce the rotating speed and feed rate like mentioned above. 6. Make overhang as short as possible if no interference. 1. Die obige Tabelle zeigt Standard Werte für das Eckfräsen. Bei Nutenfräsen, Schnittgeschwindigkeit auf 50-70% und den Vorschub auf 40- 60% reduzieren. 2. Bitte präzise Maschinen und Werkzeughalter verwenden. 3. Bitte Luftkühlung oder Schneidflüssigkeit benutzen. 4. Empfohlene Fräsmethode: Gleichlauffräsen. 5. Bei Vibrationen oder unüblichen Geräuschen reduzieren Sie die Schnittdaten (wie oben empfohlen) entsprechend. 6. Werkzeugauskragung so kurz wie möglich wählen. B 319
