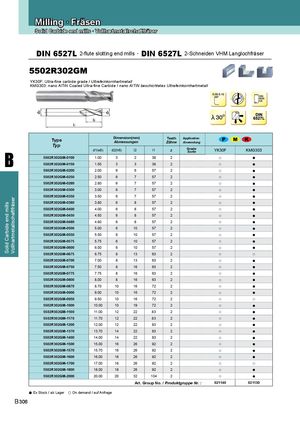

Каталог ZCC-CT фрезы монолитные - страница 66

Solid Carbide end mills Vollhartmetallschaftfräser MGeinleliranl gTur·nFingrä/Asllgeenmeine Drehbearbeitung, ISO Kennzeichnung Solid Carbide end mills · Vollhartmetallschaftfräser DIN 6527L 2-flute slotting end mills · DIN 6527L 2-Schneiden VHM Langlochfräser YK30F: Ultra-fine carbide grade / Ultrafeinkornhartmetall KMG303: nano AlTiN Coated Ultra-fine Carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall Type Dimension(mm) Teeth ApplicationAbmessungenZähneAnwendung Typ B d1(e8) d2(h6) l2 l1 z GradeSorte YK30F KMG3035502R302GM-01001.0032382○●5502R302GM-01501.5033382○● 5502R302GM-0200 2.00 6 6 57 2 ○ ● 5502R302GM-0250 2.50 6 7 57 2 ○ ● 5502R302GM-0280 2.80 6 7 57 2 ○ ● 5502R302GM-0300 3.00 6 7 57 2 ○ ● 5502R302GM-0350 3.50 6 7 57 2 ○ ● 5502R302GM-0380 3.80 6 8 57 2 ○ ● 5502R302GM-0400 4.00 6 8 57 2 ○ ● 5502R302GM-0450 4.50 6 8 57 2 ○ ● 5502R302GM-0480 4.80 6 8 57 2 ○ ● 5502R302GM-0500 5.00 6 10 57 2 ○ ● 5502R302GM-0550 5.50 6 10 57 2 ○ ● 5502R302GM-0575 5.75 6 10 57 2 ○ ● 5502R302GM-0600 6.00 6 10 57 2 ○ ● 5502R302GM-0675 6.75 8 13 63 2 ○ ○ 5502R302GM-0700 7.00 8 13 63 2 ○ ● 5502R302GM-0750 7.50 8 16 63 2 ○ ● 5502R302GM-0775 7.75 8 16 63 2 ○ ● 5502R302GM-0800 8.00 8 16 63 2 ○ ● 5502R302GM-0870 8.70 10 16 72 2 ○ ● 5502R302GM-0900 9.00 10 16 72 2 ○ ● 5502R302GM-0950 9.50 10 16 72 2 ○ ○ 5502R302GM-1000 10.00 10 19 72 2 ○ ● 5502R302GM-1100 11.00 12 22 83 2 ○ ● 5502R302GM-1170 11.70 12 22 83 2 ○ ● 5502R302GM-1200 12.00 12 22 83 2 ○ ● 5502R302GM-1370 13.70 14 22 83 2 ○ ● 5502R302GM-1400 14.00 14 22 83 2 ○ ● 5502R302GM-1500 15.00 16 26 92 2 ○ ● 5502R302GM-1570 15.70 16 26 92 2 ○ ● 5502R302GM-1600 16.00 16 26 92 2 ○ ● 5502R302GM-1700 17.00 18 26 92 2 ○ ○ 5502R302GM-1800 18.00 18 26 92 2 ○ ● 5502R302GM-2000 20.00 20 32 104 2 ○ ● Art. Group No. / Produktgruppe Nr. : 021140 021130 ● Ex Stock / ab Lager ○ On demand / auf Anfrage B 306
