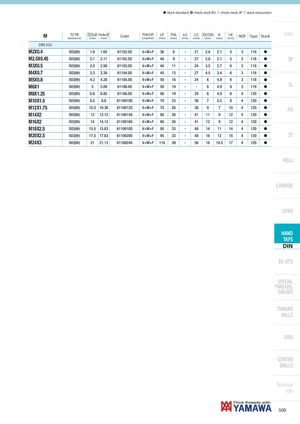

Общий каталог Yamawa 2021 - страница 508

• Copertina
• Capitoli web
• Parte finale web

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion M TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock Intro DIN 352 M2X0.4 ISO2(6H) 1.6 1.65 61102.0S V+M+F 36 8 - 21 2.8 2.1 5 3 118 h M2.5X0.45 ISO2(6H) 2.1 2.11 61102.5S V+M+F 40 9 - 27 2.8 2.1 5 3 118 h SP M3X0.5 ISO2(6H) 2.5 2.56 61103.0S V+M+F 40 11 - 24 3.5 2.7 6 3 118 h M4X0.7 ISO2(6H) 3.3 3.38 61104.0S V+M+F 45 13 - 27 4.5 3.4 6 3 118 h M5X0.8 ISO2(6H) 4.2 4.28 61105.0S V+M+F 50 16 - 24 6 4.9 8 3 118 h M6X1 ISO2(6H) 5 5.09 61106.0S V+M+F 50 19 - - 6 4.9 8 3 119 h SL M8X1.25 ISO2(6H) 6.8 6.85 61108.0S V+M+F 56 19 - 29 6 4.9 8 4 120 h M10X1.5 ISO2(6H) 8.5 8.6 6110010S V+M+F 70 23 - 36 7 5.5 8 4 120 h M12X1.75 ISO2(6H) 10.3 10.36 6110012S V+M+F 75 26 - 38 9 7 10 4 120 h PO M14X2 ISO2(6H) 12 12.12 6110014S V+M+F 80 26 - 41 11 9 12 4 120 h M16X2 ISO2(6H) 14 14.12 6110016S V+M+F 80 26 - 41 12 9 12 4 120 h M18X2.5 ISO2(6H) 15.5 15.63 6110018S V+M+F 95 33 - 48 14 11 14 4 120 h M20X2.5 ISO2(6H) 17.5 17.63 6110020S V+M+F 95 33 - 48 16 12 15 4 120 h ST M24X3 ISO2(6H) 21 21.13 6110024S V+M+F 110 39 - 56 18 14.5 17 4 120 h ROLL CARBIDE LONG HAND TAPS DIN EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS Technical info 509
