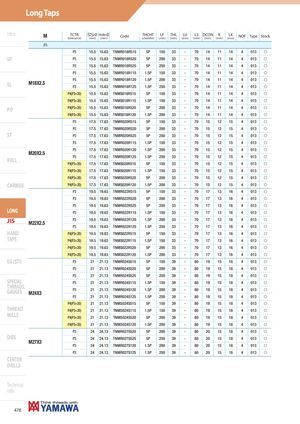

Long Taps Intro M TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock JIS P3 15.5 15.63 TNMR018R515 5P 150 33 - 70 14 11 14 4 013 f SP P3 15.5 15.63 TNMR018R520 5P 200 33 - 70 14 11 14 4 013 f P3 15.5 15.63 TNMR018R525 5P 250 33 - 70 14 11 14 4 013 f P3 15.5 15.63 TNMR018R115 1.5P 150 33 - 70 14 11 14 4 013 f P3 15.5 15.63 TNMR018R120 1.5P 200 33 - 70 14 11 14 4 013 f SL M18X2.5 P3 15.5 15.63 TNMR018R125 1.5P 250 33 - 70 14 11 14 4 013 f P4(P3+20) 15.5 15.63 TNMS018R515 5P 150 33 - 70 14 11 14 4 013 f P4(P3+20) 15.5 15.63 TNMS018R115 1.5P 150 33 - 70 14 11 14 4 013 f PO P4(P3+20) 15.5 15.63 TNMS018R520 5P 200 33 - 70 14 11 14 4 013 f P4(P3+20) 15.5 15.63 TNMS018R120 1.5P 200 33 - 70 14 11 14 4 013 f P3 17.5 17.63 TNMR020R515 5P 150 33 - 70 15 12 15 4 013 f P3 17.5 17.63 TNMR020R520 5P 200 33 - 70 15 12 15 4 013 f ST P3 17.5 17.63 TNMR020R525 5P 250 33 - 70 15 12 15 4 013 f P3 17.5 17.63 TNMR020R115 1.5P 150 33 - 70 15 12 15 4 013 f P3 17.5 17.63 TNMR020R120 1.5P 200 33 - 70 15 12 15 4 013 f M20X2.5 P3 17.5 17.63 TNMR020R125 1.5P 250 33 - 70 15 12 15 4 013 f ROLL P4(P3+20) 17.5 17.63 TNMS020R515 5P 150 33 - 70 15 12 15 4 013 f P4(P3+20) 17.5 17.63 TNMS020R115 1.5P 150 33 - 70 15 12 15 4 013 f P4(P3+20) 17.5 17.63 TNMS020R520 5P 200 33 - 70 15 12 15 4 013 f CARBIDE P4(P3+20) 17.5 17.63 TNMS020R120 1.5P 200 33 - 70 15 12 15 4 013 f P3 19.5 19.63 TNMR022R515 5P 150 33 - 70 17 13 16 4 013 f P3 19.5 19.63 TNMR022R520 5P 200 33 - 70 17 13 16 4 013 f P3 19.5 19.63 TNMR022R525 5P 250 33 - 70 17 13 16 4 013 f LONG P3 19.5 19.63 TNMR022R115 1.5P 150 33 - 70 17 13 16 4 013 f JIS M22X2.5 P3 19.5 19.63 TNMR022R120 1.5P 200 33 - 70 17 13 16 4 013 f P3 19.5 19.63 TNMR022R125 1.5P 250 33 - 70 17 13 16 4 013 f HAND P4(P3+20) 19.5 19.63 TNMS022R515 5P 150 33 - 70 17 13 16 4 013 f TAPS P4(P3+20) 19.5 19.63 TNMS022R115 1.5P 150 33 - 70 17 13 16 4 013 f P4(P3+20) 19.5 19.63 TNMS022R520 5P 200 33 - 70 17 13 16 4 013 f P4(P3+20) 19.5 19.63 TNMS022R120 1.5P 200 33 - 70 17 13 16 4 013 f EG (STI) P3 21 21.13 TNMR024S515 5P 150 39 - 80 19 15 18 4 013 f P3 21 21.13 TNMR024S520 5P 200 39 - 80 19 15 18 4 013 f P3 21 21.13 TNMR024S525 5P 250 39 - 80 19 15 18 4 013 f SPECIAL P3 21 21.13 TNMR024S115 1.5P 150 39 - 80 19 15 18 4 013 f THREADS,GAUGESM24X3 P3 21 21.13 TNMR024S120 1.5P 200 39 - 80 19 15 18 4 013 f P3 21 21.13 TNMR024S125 1.5P 250 39 - 80 19 15 18 4 013 f P4(P3+20) 21 21.13 TNMS024S515 5P 150 39 - 80 19 15 18 4 013 f THREAD P4(P3+20) 21 21.13 TNMS024S115 1.5P 150 39 - 80 19 15 18 4 013 f MILLS P4(P3+20) 21 21.13 TNMS024S520 5P 200 39 - 80 19 15 18 4 013 f P4(P3+20) 21 21.13 TNMS024S120 1.5P 200 39 - 80 19 15 18 4 013 f P3 24 24.13 TNMR027S520 5P 200 39 - 80 20 15 18 4 013 f DIES P3 24 24.13 TNMR027S525 5P 250 39 - 80 20 15 18 4 013 f M27X3 P3 24 24.13 TNMR027S120 1.5P 200 39 - 80 20 15 18 4 013 f P3 24 24.13 TNMR027S125 1.5P 250 39 - 80 20 15 18 4 013 f CENTER DRILLS Technical info 476
