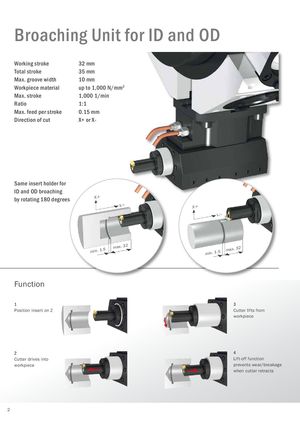

Broaching Unit for ID and OD Working stroke 32 mm Total stroke 35 mm Max. groove width 10 mm Workpiece material up to 1,000 N/mm2 Max. stroke 1,000 1/min Ratio 1:1 Max. feed per stroke 0.15 mm Direction of cut X+ or X- Same insert holder for ID and OD broaching by rotating 180 degrees min. 1.5 max. 32 min. 1.5 max. 32 Function 1 3 Position insert on Z Cutter lifts from workpiece 2 4 Cutter drives into Lift-off function workpiece prevents wear/breakage when cutter retracts 2
