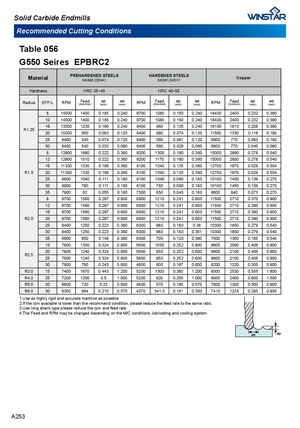

Solid Carbide Endmills Recommended Cutting Conditions Table 056 G550 Seires EPBRC2 Material PREHARDENED STEELSNAK80 CENA1 HARDENED STEELSSKD61,SKD11 Copper Hardness HRC 35~45 HRC 40~55 Radius EFF-L RPM Feed (mm/min) ap(mm) ae(mm) RPM Feed (mm/min) ap(mm) ae (mm) RPM Feed (mm/min) ap(mm) ae (mm) 8 14500 1400 0.185 0.240 9700 1080 0.150 0.240 18400 2400 0.232 0.360 10 14500 1400 0.185 0.240 9700 1080 0.150 0.240 18400 2400 0.232 0.360 16 13500 1230 0.166 0.240 8400 980 0.135 0.240 16100 1810 0.208 0.360 R1.25 20 10200 950 0.093 0.120 8400 980 0.074 0.120 11500 1330 0.116 0.180 25 8400 540 0.074 0.120 8400 560 0.061 0.120 6900 770 0.093 0.180 30 8400 540 0.033 0.060 8400 560 0.026 0.060 6900 770 0.040 0.090 8 12900 1680 0.222 0.360 9200 1300 0.180 0.360 15000 2890 0.278 0.540 12 12900 1510 0.222 0.360 9200 1170 0.180 0.360 15000 2600 0.278 0.540 16 11300 1330 0.166 0.360 8100 1040 0.135 0.360 12700 1970 0.029 0.504 R1.5 20 11300 1330 0.166 0.360 8100 1040 0.135 0.360 12700 1970 0.029 0.504 25 8800 1040 0.111 0.180 8100 1040 0.090 0.180 10100 1450 0.139 0.270 30 8800 780 0.111 0.180 8100 780 0.090 0.180 10100 1450 0.139 0.270 35 7900 62 0.055 0.180 7500 650 0.045 0.180 6600 840 0.073 0.270 8 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.370 0.900 12 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.390 0.900 16 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.390 0.900 R2.0 20 9700 1560 0.297 0.600 6800 1210 0.241 0.600 11500 2710 0.390 0.900 25 8400 1250 0.223 0.360 6000 980 0.180 0.36 10300 1850 0.279 0.540 30 8400 1250 0.223 0.360 6000 980 0.180 0.361 10300 1850 0.279 0.540 35 6600 950 0.148 0.360 6000 700 0.120 0.360 7500 1360 0.185 0.540 15 7800 1350 0.324 0.800 5600 1050 0.252 0.800 9600 2590 0.406 0.900 20 7800 1240 0.324 0.600 5600 950 0.252 0.600 9600 2100 0.406 0.900 R2.5 25 7800 1240 0.324 0.600 5600 950 0.252 0.600 9600 2100 0.406 0.900 30 7800 760 0.243 0.600 4800 600 0.197 0.600 8200 1320 0.305 0.900 R3.0 15 7400 1670 0.443 1.200 5200 1300 0.360 1.200 8000 2530 0.555 1.800 R4.0 25 7200 1200 0.5 1.000 5200 920 0.350 1.000 9000 2400 0.600 1.500 R5.0 30 6800 720 0.23 0.600 4600 570 0.190 0.570 7800 1300 0.300 0.900 R6.0 30 6350 684 0.210 0.570 4370 541.5 0.181 0.550 7410 1235 0.285 0.855 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. A253
