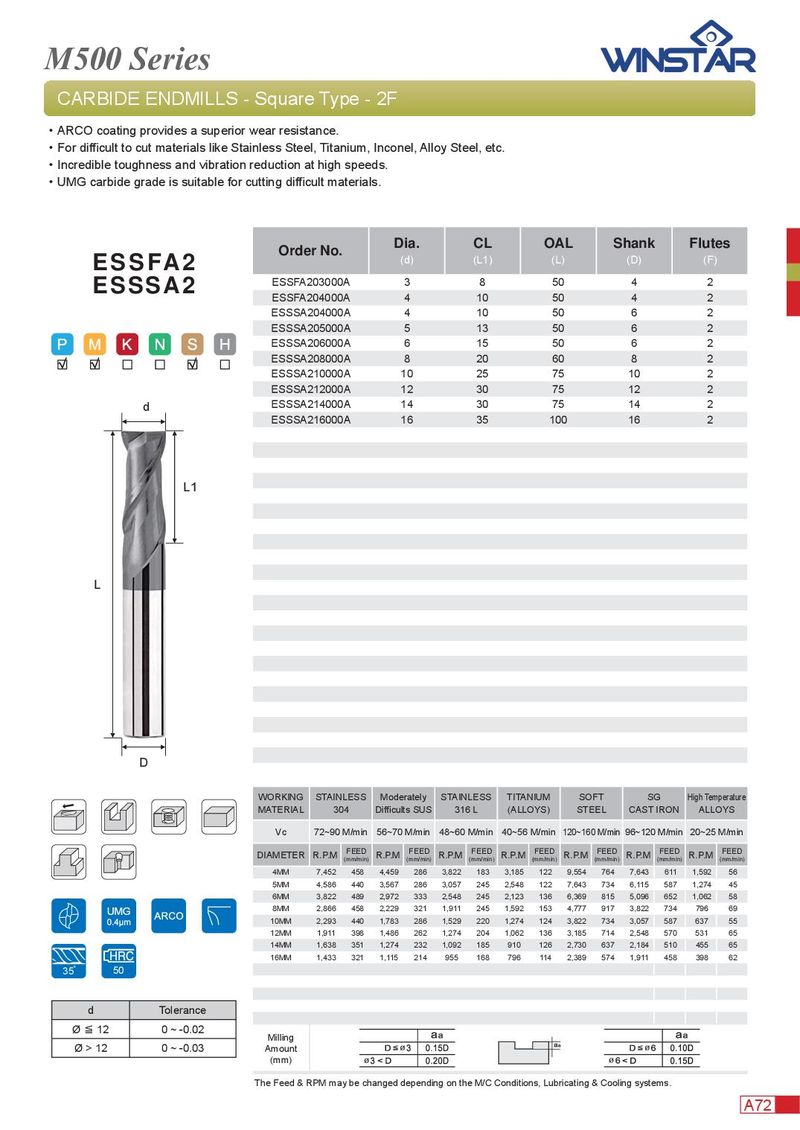

M500 Series CARBIDE ENDMILLS - Square Type - 2F ． ARCO coating provides a superior wear resistance. ． For diffi cult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel, etc. ． Incredible toughness and vibration reduction at high speeds. ． UMG carbide grade is suitable for cutting difficult materials. Dia. CL OAL Shank Flutes Order No. (d) (L1) (L) (D) (F) ESSFA2 ESSFA203000A 3 8 50 4 2 ESSSA2 ESSFA204000A 4 10 50 4 2 ESSSA204000A 4 10 50 6 2 ESSSA205000A 5 13 50 6 2 ESSSA206000A 6 15 50 6 2 ESSSA208000A 8 20 60 8 2 ESSSA210000A 10 25 75 10 2 ESSSA212000A 12 30 75 12 2 d ESSSA214000A 14 30 75 14 2 ESSSA216000A 16 35 100 16 2 L1 L D WORKING STAINLESS Moderately STAINLESS TITANIUM SOFT SG High Temperature MATERIAL 304 Difficults SUS 316 L (ALLOYS) STEEL CAST IRON ALLOYS Vc 72~90 M/min 56~70 M/min 48~60 M/min 40~56 M/min 120~160 M/min 96~120 M/min 20~25 M/min DIAMETER R.P.M FEED FEED FEED FEED FEED (mm/min) R.P.M (mm/min) R.P.M FEED (mm/min) R.P.M (mm/min) R.P.M FEED (mm/min) R.P.M (mm/min) R.P.M (mm/min) 4MM 7,452 458 4,459 286 3,822 183 3,185 122 9,554 764 7,643 611 1,592 56 5MM 4,586 440 3,567 286 3,057 245 2,548 122 7,643 734 6,115 587 1,274 45 6MM 3,822 489 2,972 333 2,548 245 2,123 136 6,369 815 5,096 652 1,062 58 8MM 2,866 458 2,229 321 1,911 245 1,592 153 4,777 917 3,822 734 796 69 10MM 2,293 440 1,783 286 1,529 220 1,274 124 3,822 734 3,057 587 637 55 12MM 1,911 398 1,486 262 1,274 204 1,062 136 3,185 714 2,548 570 531 65 14MM 1,638 351 1,274 232 1,092 185 910 126 2,730 637 2,184 510 455 65 16MM 1,433 321 1,115 214 955 168 796 114 2,389 574 1,911 458 398 62 35 50 d Tolerance Ø ≦ 12 0 ~ -0.02 Milling Ø > 12 0 ~ -0.03 Amount (mm) The Feed & RPM may be changed depending on the M/C Conditions, Lubricating & Cooling systems. A72
