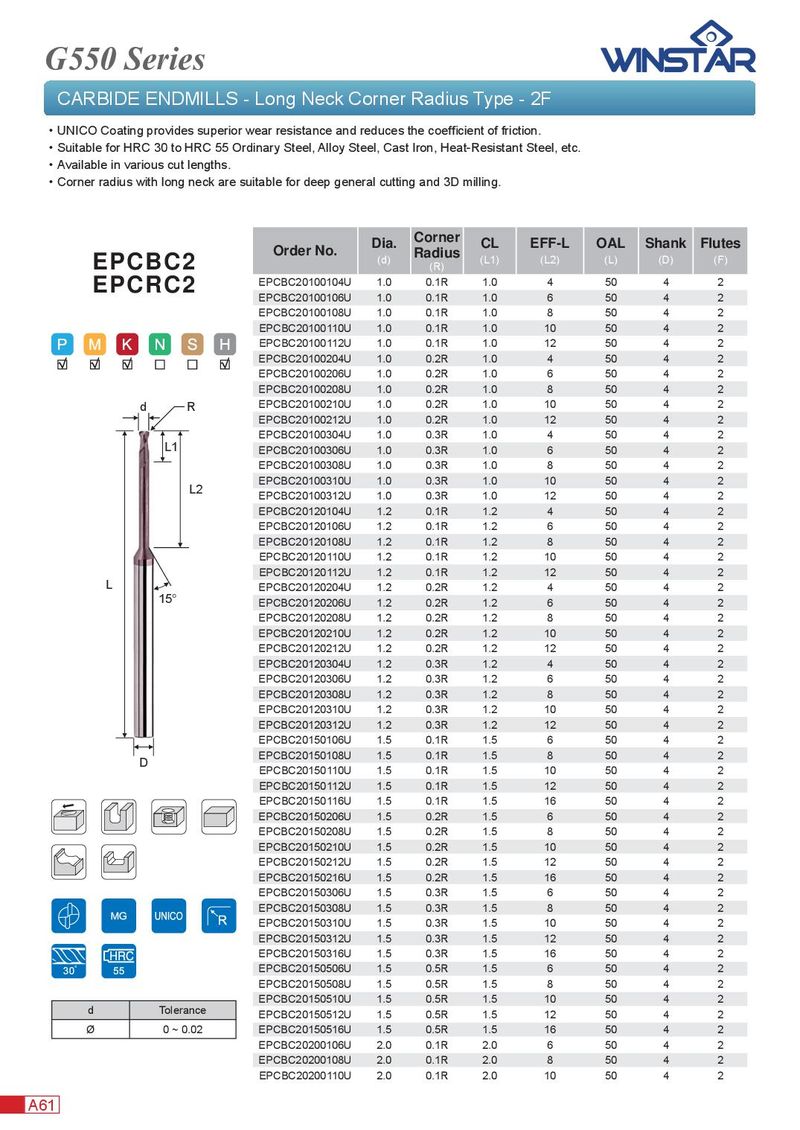

G550 Series CARBIDE ENDMILLS - Long Neck Corner Radius Type - 2F ． UNICO Coating provides superior wear resistance and reduces the coeffi cient of friction. ． Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ． Available in various cut lengths. ． Corner radius with long neck are suitable for deep general cutting and 3D milling. Corner Dia. CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) EPCBC2 (R) EPCBC20100104U 1.0 0.1R 1.0 4 50 4 2 EPCRC2 EPCBC20100106U 1.0 0.1R 1.0 6 50 4 2 EPCBC20100108U 1.0 0.1R 1.0 8 50 4 2 EPCBC20100110U 1.0 0.1R 1.0 10 50 4 2 EPCBC20100112U 1.0 0.1R 1.0 12 50 4 2 EPCBC20100204U 1.0 0.2R 1.0 4 50 4 2 EPCBC20100206U 1.0 0.2R 1.0 6 50 4 2 EPCBC20100208U 1.0 0.2R 1.0 8 50 4 2 d R EPCBC20100210U 1.0 0.2R 1.0 10 50 4 2 EPCBC20100212U 1.0 0.2R 1.0 12 50 4 2 EPCBC20100304U 1.0 0.3R 1.0 4 50 4 2 L1 EPCBC20100306U 1.0 0.3R 1.0 6 50 4 2 EPCBC20100308U 1.0 0.3R 1.0 8 50 4 2 EPCBC20100310U 1.0 0.3R 1.0 10 50 4 2 L2 EPCBC20100312U 1.0 0.3R 1.0 12 50 4 2 EPCBC20120104U 1.2 0.1R 1.2 4 50 4 2 EPCBC20120106U 1.2 0.1R 1.2 6 50 4 2 EPCBC20120108U 1.2 0.1R 1.2 8 50 4 2 EPCBC20120110U 1.2 0.1R 1.2 10 50 4 2 EPCBC20120112U 1.2 0.1R 1.2 12 50 4 2 L EPCBC20120204U 1.2 0.2R 1.2 4 50 4 2 15° EPCBC20120206U 1.2 0.2R 1.2 6 50 4 2 EPCBC20120208U 1.2 0.2R 1.2 8 50 4 2 EPCBC20120210U 1.2 0.2R 1.2 10 50 4 2 EPCBC20120212U 1.2 0.2R 1.2 12 50 4 2 EPCBC20120304U 1.2 0.3R 1.2 4 50 4 2 EPCBC20120306U 1.2 0.3R 1.2 6 50 4 2 EPCBC20120308U 1.2 0.3R 1.2 8 50 4 2 EPCBC20120310U 1.2 0.3R 1.2 10 50 4 2 EPCBC20120312U 1.2 0.3R 1.2 12 50 4 2 EPCBC20150106U 1.5 0.1R 1.5 6 50 4 2 EPCBC20150108U 1.5 0.1R 1.5 8 50 4 2 D EPCBC20150110U 1.5 0.1R 1.5 10 50 4 2 EPCBC20150112U 1.5 0.1R 1.5 12 50 4 2 EPCBC20150116U 1.5 0.1R 1.5 16 50 4 2 EPCBC20150206U 1.5 0.2R 1.5 6 50 4 2 EPCBC20150208U 1.5 0.2R 1.5 8 50 4 2 EPCBC20150210U 1.5 0.2R 1.5 10 50 4 2 EPCBC20150212U 1.5 0.2R 1.5 12 50 4 2 EPCBC20150216U 1.5 0.2R 1.5 16 50 4 2 EPCBC20150306U 1.5 0.3R 1.5 6 50 4 2 EPCBC20150308U 1.5 0.3R 1.5 8 50 4 2 EPCBC20150310U 1.5 0.3R 1.5 10 50 4 2 EPCBC20150312U 1.5 0.3R 1.5 12 50 4 2 EPCBC20150316U 1.5 0.3R 1.5 16 50 4 2 EPCBC20150506U 1.5 0.5R 1.5 6 50 4 2 EPCBC20150508U 1.5 0.5R 1.5 8 50 4 2 EPCBC20150510U 1.5 0.5R 1.5 10 50 4 2 d Tolerance EPCBC20150512U 1.5 0.5R 1.5 12 50 4 2 Ø 0 ~ 0.02 EPCBC20150516U 1.5 0.5R 1.5 16 50 4 2 EPCBC20200106U 2.0 0.1R 2.0 6 50 4 2 EPCBC20200108U 2.0 0.1R 2.0 8 50 4 2 EPCBC20200110U 2.0 0.1R 2.0 10 50 4 2 A61
