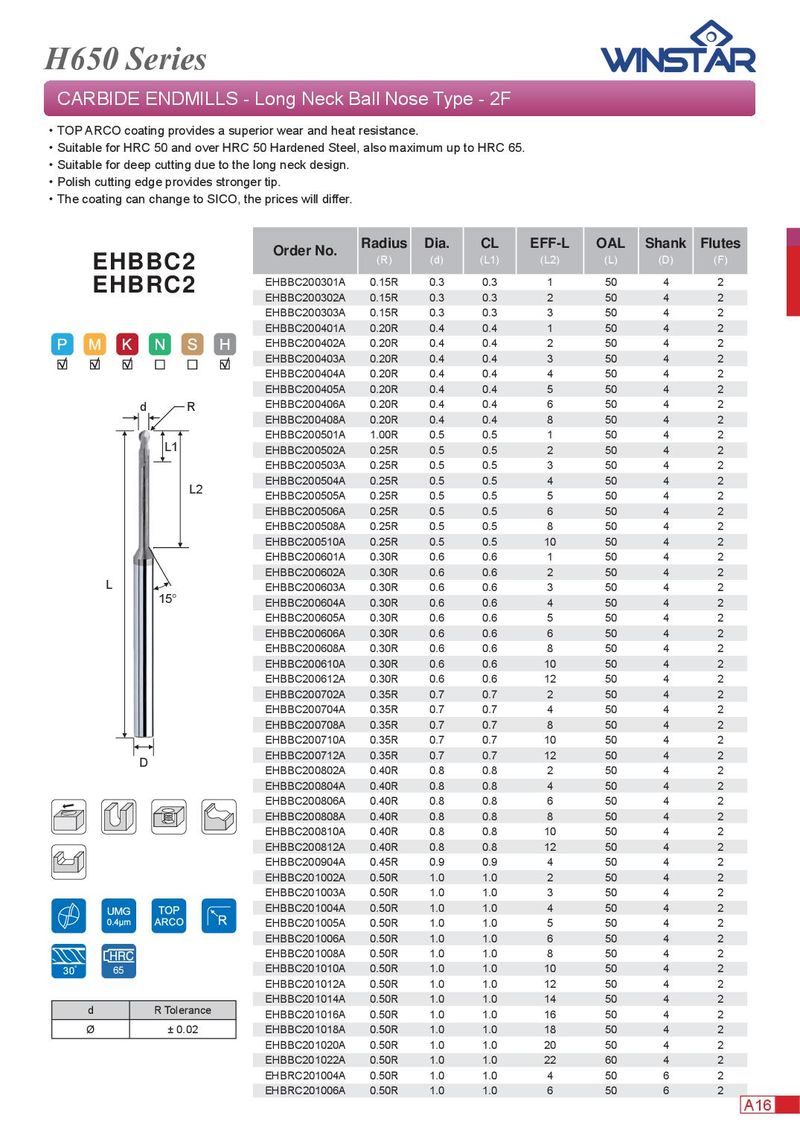

H650 Series CARBIDE ENDMILLS - Long Neck Ball Nose Type - 2F ． TOP ARCO coating provides a superior wear and heat resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Suitable for deep cutting due to the long neck design. ． Polish cutting edge provides stronger tip. ． The coating can change to SICO, the prices will differ. Radius Dia. CL EFF-L OAL Shank Flutes Order No. (R) (d) (L1) (L2) (L) (D) (F) EHBBC2 EHBBC200301A 0.15R 0.3 0.3 1 50 4 2 EHBRC2 EHBBC200302A 0.15R 0.3 0.3 2 50 4 2 EHBBC200303A 0.15R 0.3 0.3 3 50 4 2 EHBBC200401A 0.20R 0.4 0.4 1 50 4 2 EHBBC200402A 0.20R 0.4 0.4 2 50 4 2 EHBBC200403A 0.20R 0.4 0.4 3 50 4 2 EHBBC200404A 0.20R 0.4 0.4 4 50 4 2 EHBBC200405A 0.20R 0.4 0.4 5 50 4 2 d R EHBBC200406A 0.20R 0.4 0.4 6 50 4 2 EHBBC200408A 0.20R 0.4 0.4 8 50 4 2 EHBBC200501A 1.00R 0.5 0.5 1 50 4 2 L1 EHBBC200502A 0.25R 0.5 0.5 2 50 4 2 EHBBC200503A 0.25R 0.5 0.5 3 50 4 2 EHBBC200504A 0.25R 0.5 0.5 4 50 4 2 L2 EHBBC200505A 0.25R 0.5 0.5 5 50 4 2 EHBBC200506A 0.25R 0.5 0.5 6 50 4 2 EHBBC200508A 0.25R 0.5 0.5 8 50 4 2 EHBBC200510A 0.25R 0.5 0.5 10 50 4 2 EHBBC200601A 0.30R 0.6 0.6 1 50 4 2 EHBBC200602A 0.30R 0.6 0.6 2 50 4 2 L EHBBC200603A 0.30R 0.6 0.6 3 50 4 2 15° EHBBC200604A 0.30R 0.6 0.6 4 50 4 2 EHBBC200605A 0.30R 0.6 0.6 5 50 4 2 EHBBC200606A 0.30R 0.6 0.6 6 50 4 2 EHBBC200608A 0.30R 0.6 0.6 8 50 4 2 EHBBC200610A 0.30R 0.6 0.6 10 50 4 2 EHBBC200612A 0.30R 0.6 0.6 12 50 4 2 EHBBC200702A 0.35R 0.7 0.7 2 50 4 2 EHBBC200704A 0.35R 0.7 0.7 4 50 4 2 EHBBC200708A 0.35R 0.7 0.7 8 50 4 2 EHBBC200710A 0.35R 0.7 0.7 10 50 4 2 EHBBC200712A 0.35R 0.7 0.7 12 50 4 2 D EHBBC200802A 0.40R 0.8 0.8 2 50 4 2 EHBBC200804A 0.40R 0.8 0.8 4 50 4 2 EHBBC200806A 0.40R 0.8 0.8 6 50 4 2 EHBBC200808A 0.40R 0.8 0.8 8 50 4 2 EHBBC200810A 0.40R 0.8 0.8 10 50 4 2 EHBBC200812A 0.40R 0.8 0.8 12 50 4 2 EHBBC200904A 0.45R 0.9 0.9 4 50 4 2 EHBBC201002A 0.50R 1.0 1.0 2 50 4 2 EHBBC201003A 0.50R 1.0 1.0 3 50 4 2 EHBBC201004A 0.50R 1.0 1.0 4 50 4 2 EHBBC201005A 0.50R 1.0 1.0 5 50 4 2 EHBBC201006A 0.50R 1.0 1.0 6 50 4 2 EHBBC201008A 0.50R 1.0 1.0 8 50 4 2 65 EHBBC201010A 0.50R 1.0 1.0 10 50 4 2 EHBBC201012A 0.50R 1.0 1.0 12 50 4 2 EHBBC201014A 0.50R 1.0 1.0 14 50 4 2 d R Tolerance EHBBC201016A 0.50R 1.0 1.0 16 50 4 2 Ø ± 0.02 EHBBC201018A 0.50R 1.0 1.0 18 50 4 2 EHBBC201020A 0.50R 1.0 1.0 20 50 4 2 EHBBC201022A 0.50R 1.0 1.0 22 60 4 2 EHBRC201004A 0.50R 1.0 1.0 4 50 6 2 EHBRC201006A 0.50R 1.0 1.0 6 50 6 2 A16
