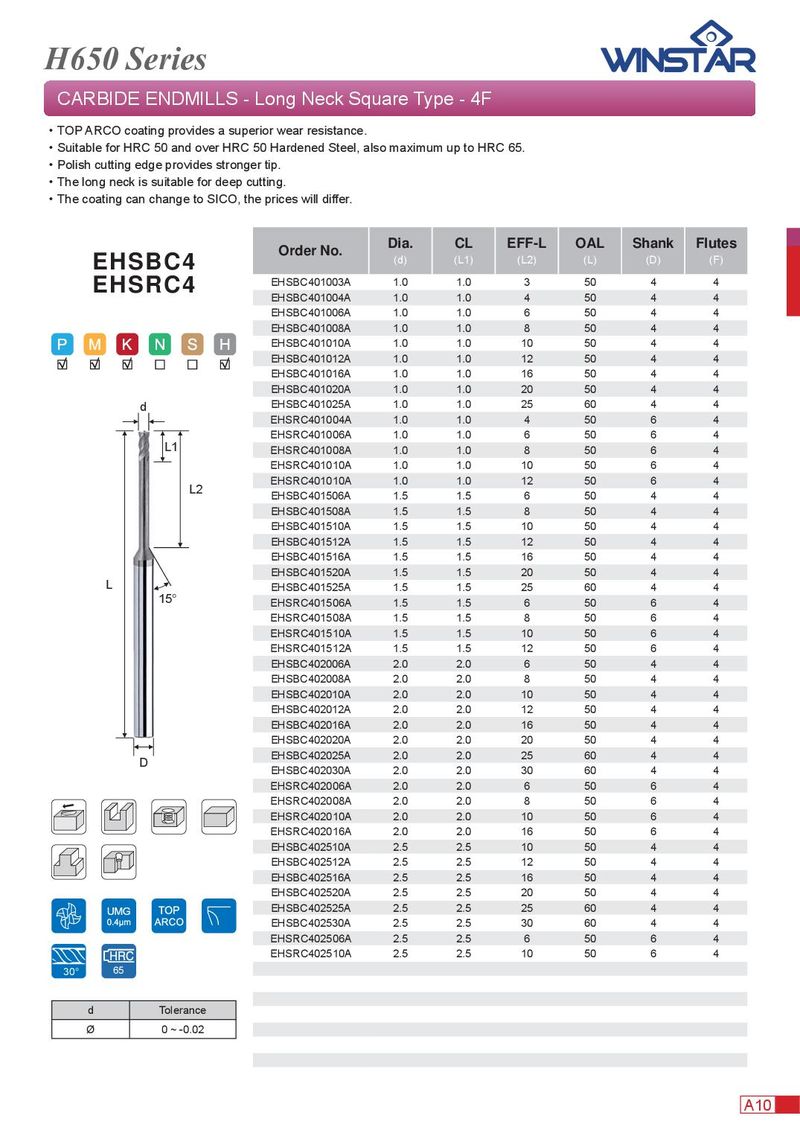

H650 Series CARBIDE ENDMILLS - Long Neck Square Type - 4F ． TOP ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Polish cutting edge provides stronger tip. ． The long neck is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Dia. CL EFF-L OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) EHSBC4 EHSBC401003A 1.0 1.0 3 50 4 4 EHSRC4 EHSBC401004A 1.0 1.0 4 50 4 4 EHSBC401006A 1.0 1.0 6 50 4 4 EHSBC401008A 1.0 1.0 8 50 4 4 EHSBC401010A 1.0 1.0 10 50 4 4 EHSBC401012A 1.0 1.0 12 50 4 4 EHSBC401016A 1.0 1.0 16 50 4 4 EHSBC401020A 1.0 1.0 20 50 4 4 d EHSBC401025A 1.0 1.0 25 60 4 4 EHSRC401004A 1.0 1.0 4 50 6 4 EHSRC401006A 1.0 1.0 6 50 6 4 L1 EHSRC401008A 1.0 1.0 8 50 6 4 EHSRC401010A 1.0 1.0 10 50 6 4 EHSRC401010A 1.0 1.0 12 50 6 4 L2 EHSBC401506A 1.5 1.5 6 50 4 4 EHSBC401508A 1.5 1.5 8 50 4 4 EHSBC401510A 1.5 1.5 10 50 4 4 EHSBC401512A 1.5 1.5 12 50 4 4 EHSBC401516A 1.5 1.5 16 50 4 4 EHSBC401520A 1.5 1.5 20 50 4 4 L EHSBC401525A 1.5 1.5 25 60 4 4 15° EHSRC401506A 1.5 1.5 6 50 6 4 EHSRC401508A 1.5 1.5 8 50 6 4 EHSRC401510A 1.5 1.5 10 50 6 4 EHSRC401512A 1.5 1.5 12 50 6 4 EHSBC402006A 2.0 2.0 6 50 4 4 EHSBC402008A 2.0 2.0 8 50 4 4 EHSBC402010A 2.0 2.0 10 50 4 4 EHSBC402012A 2.0 2.0 12 50 4 4 EHSBC402016A 2.0 2.0 16 50 4 4 EHSBC402020A 2.0 2.0 20 50 4 4 EHSBC402025A 2.0 2.0 25 60 4 4 D EHSBC402030A 2.0 2.0 30 60 4 4 EHSRC402006A 2.0 2.0 6 50 6 4 EHSRC402008A 2.0 2.0 8 50 6 4 EHSRC402010A 2.0 2.0 10 50 6 4 EHSRC402016A 2.0 2.0 16 50 6 4 EHSBC402510A 2.5 2.5 10 50 4 4 EHSBC402512A 2.5 2.5 12 50 4 4 EHSBC402516A 2.5 2.5 16 50 4 4 EHSBC402520A 2.5 2.5 20 50 4 4 EHSBC402525A 2.5 2.5 25 60 4 4 EHSBC402530A 2.5 2.5 30 60 4 4 EHSRC402506A 2.5 2.5 6 50 6 4 EHSRC402510A 2.5 2.5 10 50 6 4 30° 65 d Tolerance Ø 0 ~ -0.02 A10
