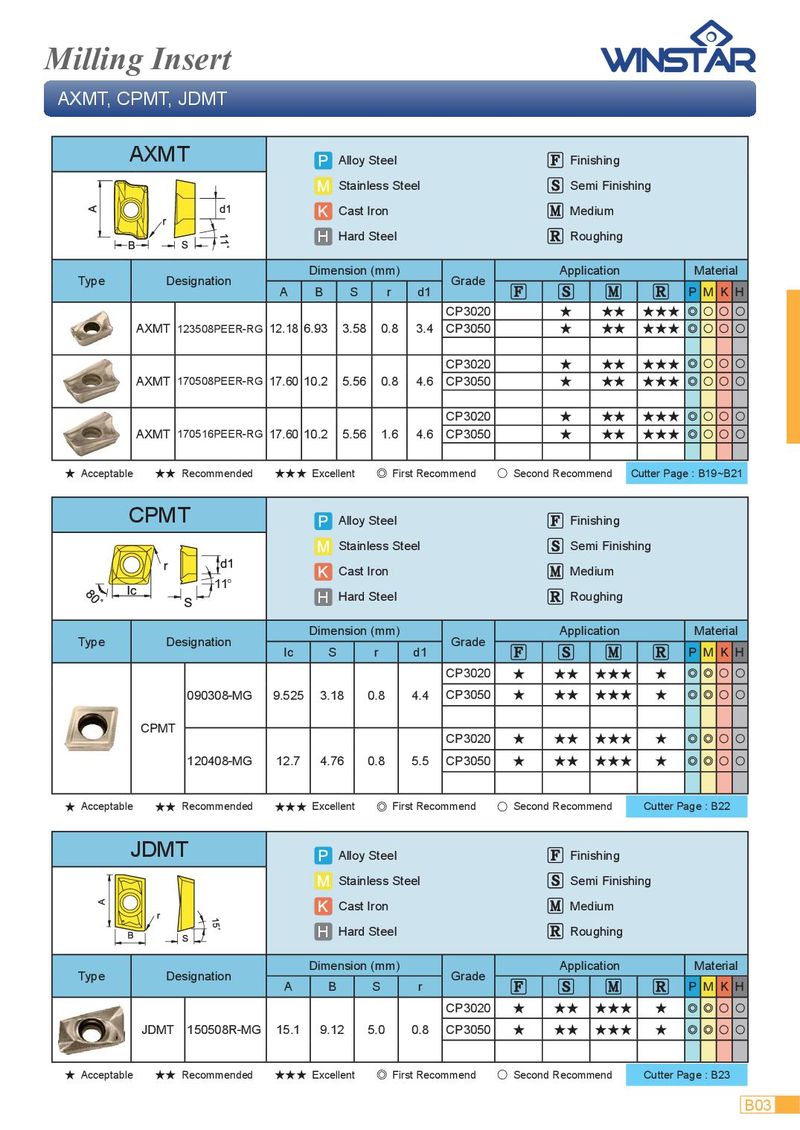

Milling Insert AXMT, CPMT, JDMT AXMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 123508PEER-RG 12.18 6.93 3.58 0.8 3.4 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 170508PEER-RG 17.60 10.2 5.56 0.8 4.6 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 170516PEER-RG 17.60 10.2 5.56 1.6 4.6 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　◎ First Recommend 　　○ Second Recommend Cutter Page : B19~B21 CPMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium 11° H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade Ic S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ 090308-MG 9.525 3.18 0.8 4.4 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CPMT CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ 120408-MG 12.7 4.76 0.8 5.5 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　◎ First Recommend 　　○ Second Recommend Cutter Page : B22 JDMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ JDMT 150508R-MG 15.1 9.12 5.0 0.8 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　◎ First Recommend 　　○ Second Recommend Cutter Page : B23 B03
