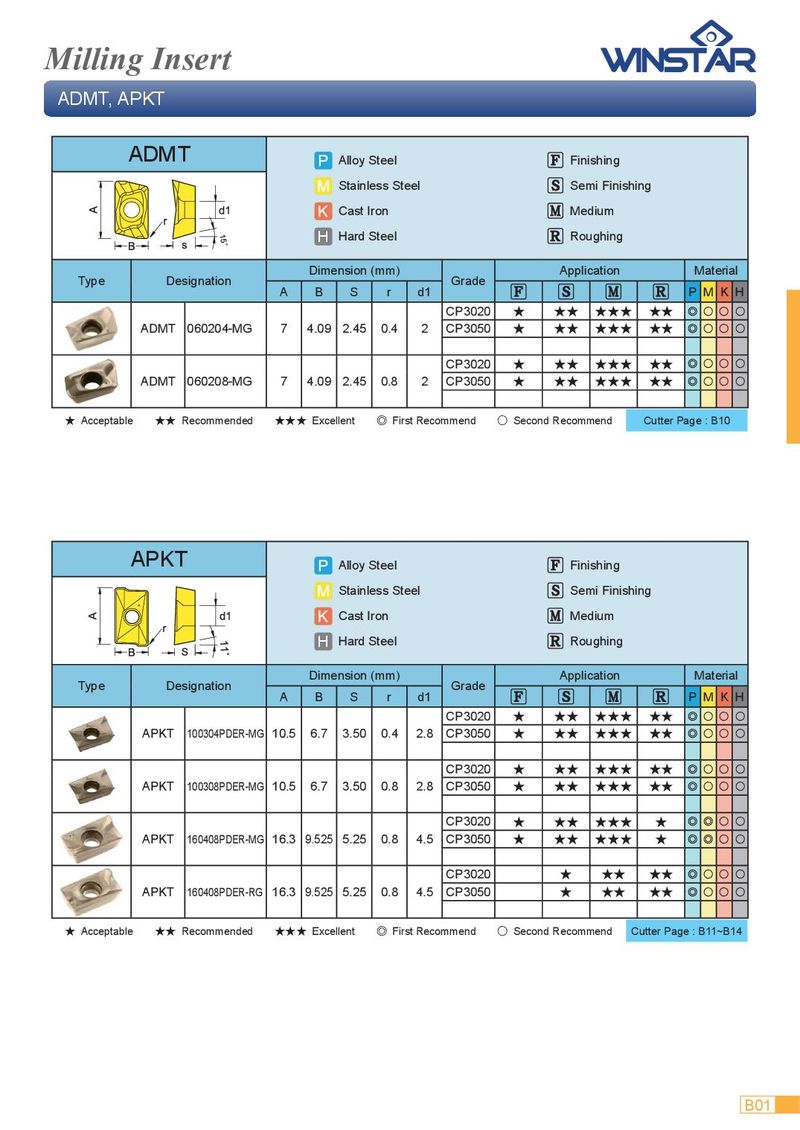

Milling Insert ADMT, APKT ADMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ADMT 060204-MG 7 4.09 2.45 0.4 2 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ADMT 060208-MG 7 4.09 2.45 0.8 2 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　◎ First Recommend 　　○ Second Recommend Cutter Page : B10 APKT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ APKT 100304PDER-MG 10.5 6.7 3.50 0.4 2.8 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ APKT 100308PDER-MG 10.5 6.7 3.50 0.8 2.8 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APKT 160408PDER-MG 16.3 9.525 5.25 0.8 4.5 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APKT 160408PDER-RG 16.3 9.525 5.25 0.8 4.5 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　◎ First Recommend 　　○ Second Recommend Cutter Page : B11~B14 B01
