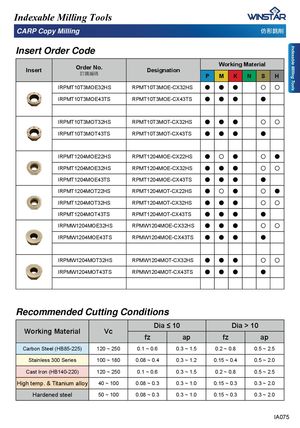

Каталог Winstar инструмент со сменными пластинами 2020 - страница 85

Indexable Milling Tools Indexable Milling Tools CARP Copy Milling ₎ヱ搠⏙ Insert Order Code Insert Order No.宑庋佷䩋 Working MaterialDesignationPMKNSH IRPMT10T3MOE32HS RPMT10T3MOE-CX32HS β β β ΰ ΰ IRPMT10T3MOE43TS RPMT10T3MOE-CX43TS β β β β IRPMT10T3MOT32HS RPMT10T3MOT-CX32HS β β β ΰ ΰ IRPMT10T3MOT43TS RPMT10T3MOT-CX43TS β β β β IRPMT1204MOE22HS RPMT1204MOE-CX22HS β ΰ β ΰ β IRPMT1204MOE32HS RPMT1204MOE-CX32HS β β β ΰ ΰ IRPMT1204MOE43TS RPMT1204MOE-CX43TS β β β β IRPMT1204MOT22HS RPMT1204MOT-CX22HS β ΰ β ΰ β IRPMT1204MOT32HS RPMT1204MOT-CX32HS β β β ΰ ΰ IRPMT1204MOT43TS RPMT1204MOT-CX43TS β β β β IRPMW1204MOE32HS RPMW1204MOE-CX32HS β β β ΰ ΰ IRPMW1204MOE43TS RPMW1204MOE-CX43TS β β β β IRPMW1204MOT32HS RPMW1204MOT-CX32HS β β β ΰ ΰ IRPMW1204MOT43TS RPMW1204MOT-CX43TS β β β β Recommended Cutting Conditions 'LD” Dia > 10 Working Material Vc fz ap fz ap Carbon Steel (HB85-225) 120 ~ 250 0.1 ~ 0.6 0.3 ~ 1.5 0.2 ~ 0.8 0.5 ~ 2.5 Stainless 300 Series 100 ~ 180 0.08 ~ 0.4 0.3 ~ 1.2 0.15 ~ 0.4 0.5 ~ 2.0 Cast Iron (HB140-220) 120 ~ 250 0.1 ~ 0.6 0.3 ~ 1.5 0.2 ~ 0.8 0.5 ~ 2.5 High temp. & Titanium alloy 40 ~ 100 0.08 ~ 0.3 0.3 ~ 1.0 0.15 ~ 0.3 0.3 ~ 2.0 Hardened steel 50 ~ 100 0.08 ~ 0.3 0.3 ~ 1.0 0.15 ~ 0.3 0.3 ~ 2.0 IA075
