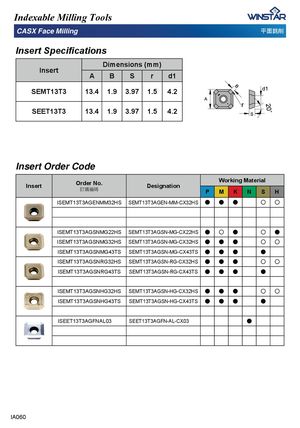

Каталог Winstar инструмент со сменными пластинами 2020 - страница 70

Indexable Milling Tools CASX Face Milling 。棱搠⏙ ,QVHUW6SHFL¿FDWLRQV Dimensions (mm) Insert A B S r d1 SEMT13T3 13.4 1.9 3.97 1.5 4.2 SEET13T3 13.4 1.9 3.97 1.5 4.2 Insert Order Code Insert Order No.宑庋佷䩋 Working MaterialDesignationPMKNSH ISEMT13T3AGENMM32HS SEMT13T3AGEN-MM-CX32HS β β β ΰ ΰ ISEMT13T3AGSNMG22HS SEMT13T3AGSN-MG-CX22HS β ΰ β ΰ β ISEMT13T3AGSNMG32HS SEMT13T3AGSN-MG-CX32HS β β β ΰ ΰ ISEMT13T3AGSNMG43TS SEMT13T3AGSN-MG-CX43TS β β β β ISEMT13T3AGSNRG32HS SEMT13T3AGSN-RG-CX32HS β β β ΰ ΰ ISEMT13T3AGSNRG43TS SEMT13T3AGSN-RG-CX43TS β β β β ISEMT13T3AGSNHG32HS SEMT13T3AGSN-HG-CX32HS β β β ΰ ΰ ISEMT13T3AGSNHG43TS SEMT13T3AGSN-HG-CX43TS β β β β ISEET13T3AGFNAL03 SEET13T3AGFN-AL-CX03 β IA060
